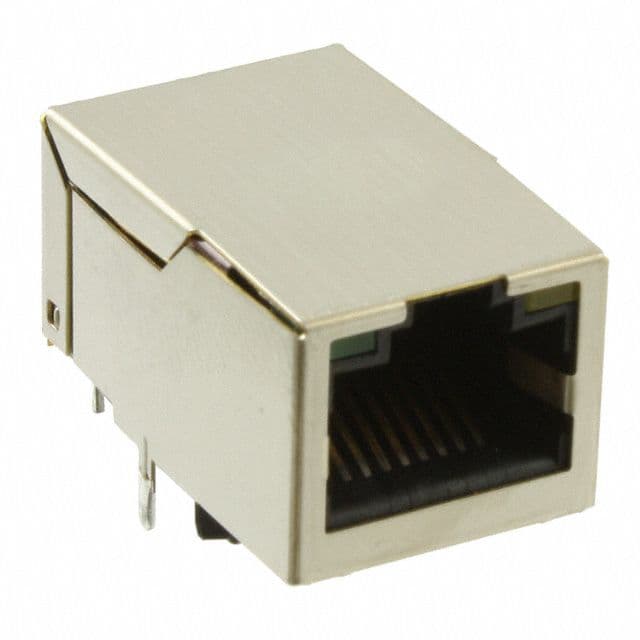

8-position, 1-port, right-angle modular Ethernet connector featuring a shielded, through-hole mount design with solder termination. This female jack utilizes bronze contacts with gold plating for reliable connectivity, supporting 4 cores per jack. Operating within a temperature range of -40°C to 85°C, the connector is lead-free and ROHS compliant, with a pitch of 2.54mm and dimensions of 16.26mm length and 25.4mm depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse JXR1-0015NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Green, Yellow |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 25.4mm |
| Direction | Up |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 25 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PULSEJACK™ JXR1 |
| Shielding | Shielded |
| Termination | Solder |
| RoHS | Compliant |
Download the complete datasheet for Pulse JXR1-0015NL to view detailed technical specifications.
