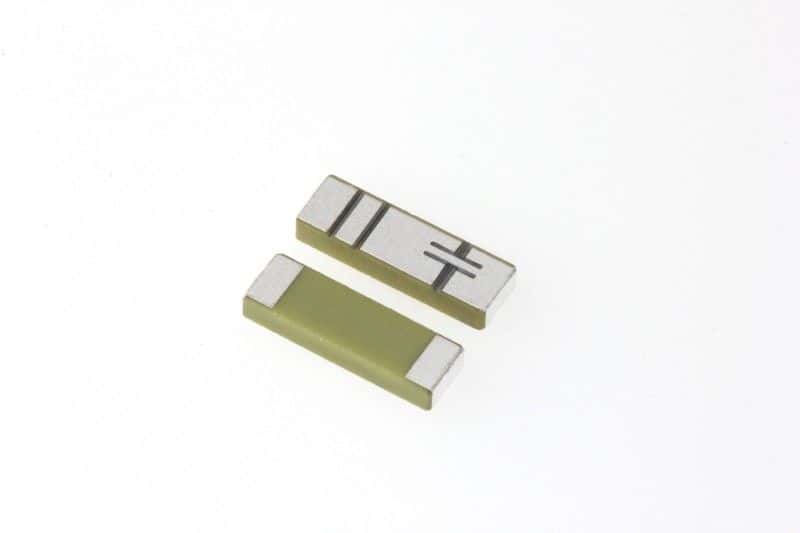

Dual-band ceramic antenna for 2.4835GHz and 5850MHz operation, featuring 4.2dBi gain. This surface-mount (SMD/SMT) component offers 50 Ohm impedance and a return loss of -10dB. Designed for solder termination, it measures 10mm in length, 3.2mm in width, and 0.059 inches in height, with an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse W3006 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 5GHz |
| Height | 0.059inch |
| Impedance | 50R |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bands | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Return Loss | -10dB |
| RoHS Compliant | Yes |
| Termination | Solder |
| Width | 3.2mm |
| RoHS | Compliant |
