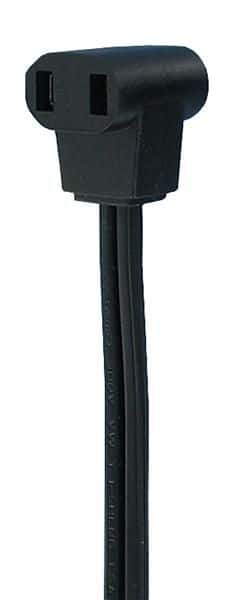

2-conductor AC power cable assembly featuring 18AWG wire, a 125V AC voltage rating, and a 10A current rating. This 610mm (2-foot) lead assembly terminates with a 2-position female connector and two fan terminals. Approvals include UL and CSA, with a lead-free construction.
PackageAxial
Voltage Rating125V
Current Rating10A
Quick Jump:
Technical Specifications
Qualtek 07199-24 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | Axial |
| Connector Type A | Receptacle |
| Current Rating | 10A |
| Lead Free | Lead Free |
| Lead Length | 610mm |
| Length | 2foot |
| Max Current Rating | 10A |
| Max Voltage Rating (AC) | 125V |
| Number of Conductors | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Thickness | 13.6mm |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 300V |
| Width | 16mm |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Qualtek 07199-24 Datasheet
Download the complete datasheet for Qualtek 07199-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
