The CUB3LR00 is a panel counter LCD display with counter logic function, featuring a height of 27.9mm and panel mount. It operates within a temperature range of -30°C to 75°C and is compliant with IEC, EN, and CE approvals. The display is RoHS compliant and is part of the CUB7 series. It is not Reach SVHC compliant.
MountingPanel
Quick Jump:
Technical Specifications
Red Lion CUB3LR00 technical specifications.
General
| Approvals | IEC, EN, CE |
| Display Type | LCD |
| Height | 27.9mm |
| Logic Function | Counter |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Output Type | Digital |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CUB7 |
| Weight | 3oz |
Compliance
| RoHS | Compliant |
Datasheet
Red Lion CUB3LR00 Datasheet
Download the complete datasheet for Red Lion CUB3LR00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

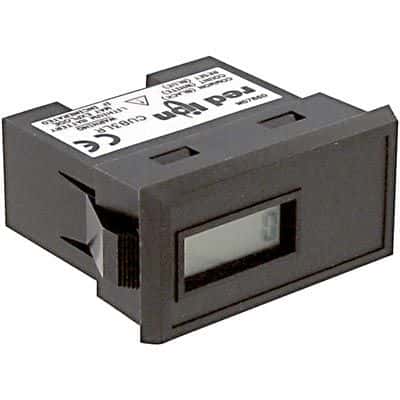

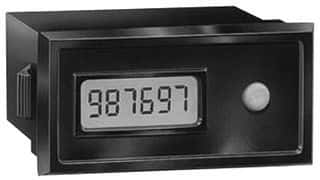

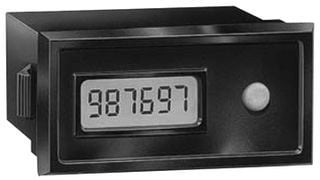

Product Images
