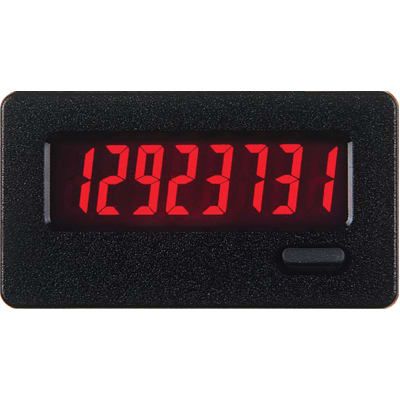

The CUB7CCR0 panel meter counter from Red Lion features an LCD display with 8 characters per row, a maximum operating temperature of 50°C, and a supply voltage range of 1.25V to 28V. It is rated for IP66, water-resistant, and dust-tight, and is compliant with RoHS regulations. The meter is mounted on a panel and has wire leads for termination. It is a part of the CUB7 series and is approved by UL, IEC, and EN standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion CUB7CCR0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, IEC, EN |
| Connection Type | PLUG |
| Count Direction | Up |
| Depth | 41.6mm |
| Display Type | LCD |
| Logic Function | Counter |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (DC) | 28V |
| Min Supply Voltage (DC) | 1.25V |
| Mount | Panel |
| Number Of Characters Per Row | 8 |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight, IP65 |
| Reach SVHC Compliant | No |
| Reset | Front Panel , External |
| RoHS Compliant | Yes |
| Series | CUB7 |
| Termination | Wire Leads |
| Weight | 0.05kg |
| RoHS | Compliant |
