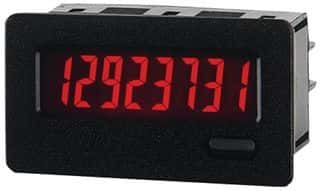

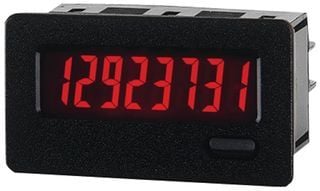

This panel meter features an LCD display and counter logic function with 8 characters per row. It operates at a maximum temperature of 50°C and minimum temperature of 0°C. The meter is rated for 250V operating supply voltage and is compliant with IP66, making it water resistant and dust tight. It is also RoHS compliant and has a weight of 0.126lb.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion CUB7CVG0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Connection Type | PLUG |
| Count Direction | Up |
| Depth | 41.6mm |
| Display Type | LCD |
| Logic Function | Counter |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Panel |
| Number Of Characters Per Row | 8 |
| Operating Supply Voltage | 250V |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Reset | Front Panel , External |
| RoHS Compliant | Yes |
| Series | CUB7 |
| Termination | Wire Leads |
| Weight | 0.126lb |
| RoHS | Compliant |
Download the complete datasheet for Red Lion CUB7CVG0 to view detailed technical specifications.
