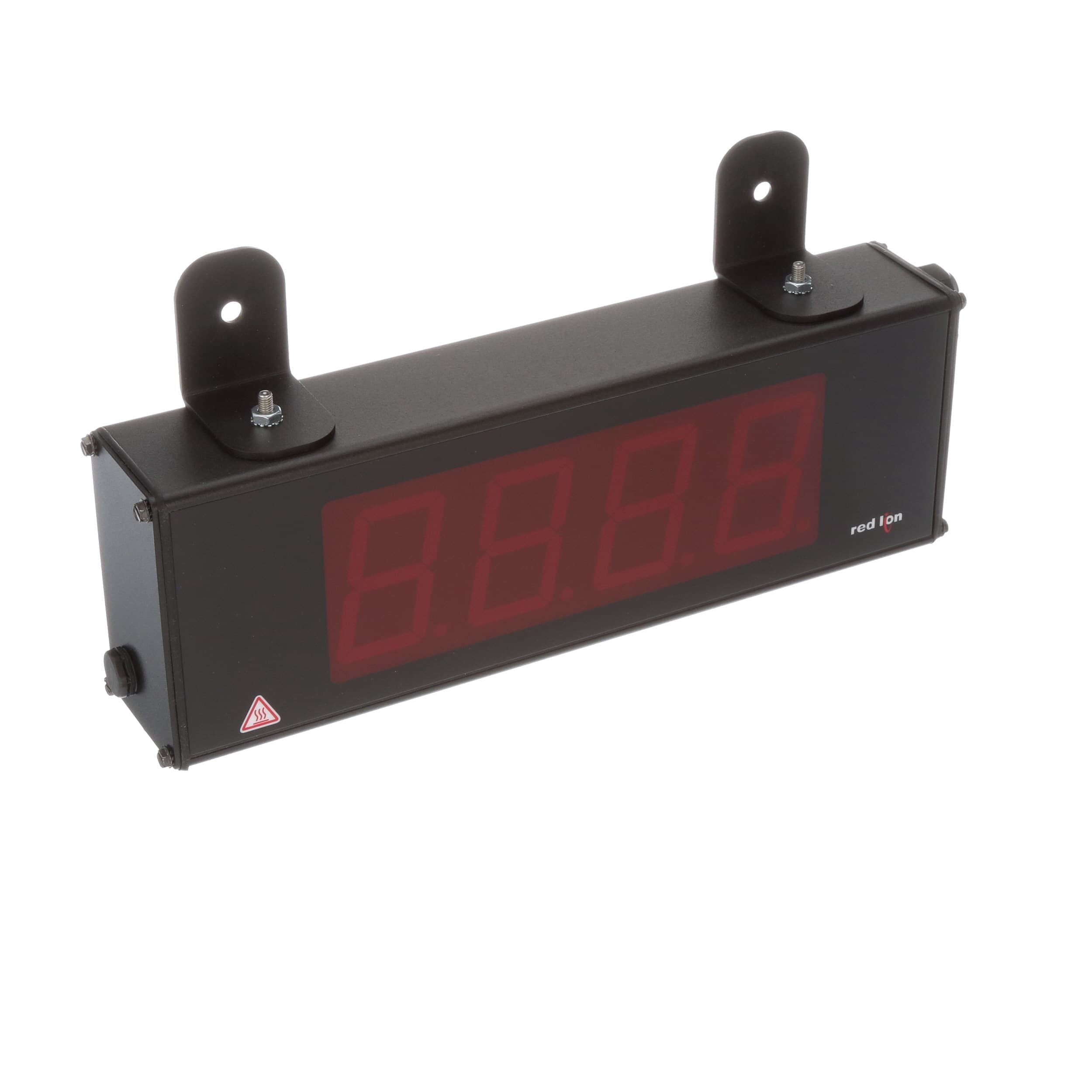

The LD200400 counter module is a bidirectional device with a 4-digit display, designed for chassis and panel mounting. It operates within a temperature range of 0 to 50°C. The module is approved by UL, CSA, IEC, and EN, and is RoHS compliant. It can handle a maximum supply voltage of 250V AC and 250V DC, with a minimum of 21.6V DC. The module is water-resistant and dust-tight, with an IP66 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion LD200400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, IEC, EN |
| Count Direction | Bidirectional |
| Height | 102mm |
| Lead Free | Lead Free |
| Logic Function | Counter |
| Max Frequency | 25kHz |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (AC) | 250V |
| Min Supply Voltage (AC) | 85V |
| Max Supply Voltage (DC) | 250V |
| Min Supply Voltage (DC) | 21.6V |
| Mount | Chassis Mount, Panel |
| Number Of Characters Per Row | 4 |
| Output Type | RS-232, RS-485 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Reset | External |
| RoHS Compliant | Yes |
| Series | LD |
| Termination | Screw |
| Weight | 1.59kg |
| Width | 304.8mm |
| RoHS | Compliant |
