The PAXLHV00 is a panel meter with an operating temperature range of 0°C to 60°C. It features a water-resistant and dust-tight design with IP65 rating. The meter is approved by UL, IEC, NEMA, CE, and cULus. It measures 104.1mm in depth, 49.5mm in height, 96.5mm in length, and 107mm in width, with a weight of 0.65lb. The meter is mounted on a panel using a clip and has a screw termination.
MountingPanel, Clip
Quick Jump:
Technical Specifications
Red Lion PAXLHV00 technical specifications.
General
| Accuracy | 0.1% |
| Approvals | UL, IEC, NEMA, CE, cULus |
| Depth | 104.1mm |
| Height | 49.5mm |
| Length | 96.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Mount | Panel, Clip |
| Number Of Characters Per Row | 3 |
| Package Quantity | 1 |
| Ratings | IP65, Water Resistant, Dust Tight |
| Series | PAX®LITE PAXLHV |
| Termination | Screw |
| Weight | 0.65lb |
| Width | 107mm |
Compliance
| RoHS | Compliant |
Datasheet
Red Lion PAXLHV00 Datasheet
Download the complete datasheet for Red Lion PAXLHV00 to view detailed technical specifications.
No datasheet is available for this part.

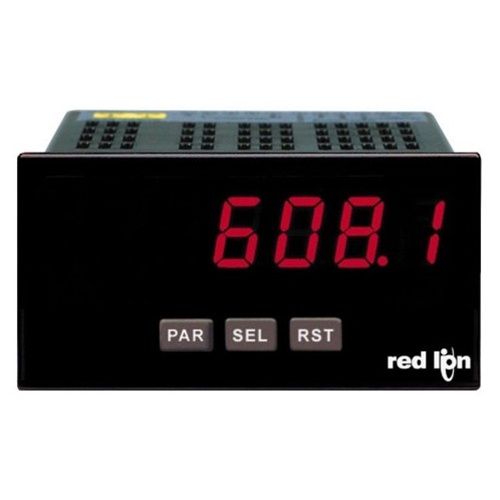

Product Images
