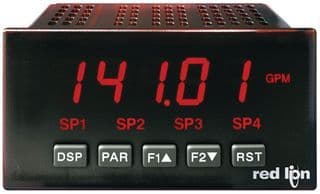

The PAXLTC00 panel meter from Red Lion is designed for panel mount applications and features a screw termination. It operates within a temperature range of 0°C to 50°C and meets the safety standards of UL, CSA, and CE. The device measures 104mm in length, 96.5mm in width, and 49.5mm in height, with a depth of 104.1mm. It is not compliant with Reach SVHC requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Red Lion PAXLTC00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Depth | 104.1mm |
| Height | 49.5mm |
| Lead Free | Contains Lead |
| Length | 104mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Panel, Clip |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| Series | PAX®LITE PAXLTC |
| Termination | Screw |
| Width | 96.5mm |
| RoHS | Compliant |
Download the complete datasheet for Red Lion PAXLTC00 to view detailed technical specifications.
