High isolation voltage Darlington output optocoupler featuring a 5kV maximum isolation voltage. This photocoupler offers a 2000% nominal current transfer ratio and a 40V collector-emitter breakdown voltage. It operates with a maximum forward current of 80mA and a maximum collector current of 200mA, with a maximum power dissipation of 200mW. The device is UL recognized, lead-free, and RoHS compliant, with a wide operating temperature range from -55°C to 100°C.
Power150mW
Quick Jump:
Technical Specifications
Renesas PS2502L-1-A technical specifications.
General
Additional Feature
UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min
40V
Current Transfer Ratio-Nom
2000%
Dark Current-Max
400nA
Forward Current-Max
80mA
Isolation Voltage-Max
5kV
JESD-609 Code
e1
Lead Free
Lead Free
Max Collector Current
200mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
40V
Max Power Dissipation
200mW
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Optoelectronic Device Type
DARLINGTON OUTPUT OPTOCOUPLER
Output Current per Channel
200mA
Output Voltage
40V
Power Dissipation
150mW
Reach SVHC Compliant
Yes
Reverse Voltage
6V
RoHS Compliant
Yes
Terminal Finish
Copper
Compliance
RoHS
Compliant
Datasheet
Renesas PS2502L-1-A Datasheet
Download the complete datasheet for Renesas PS2502L-1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

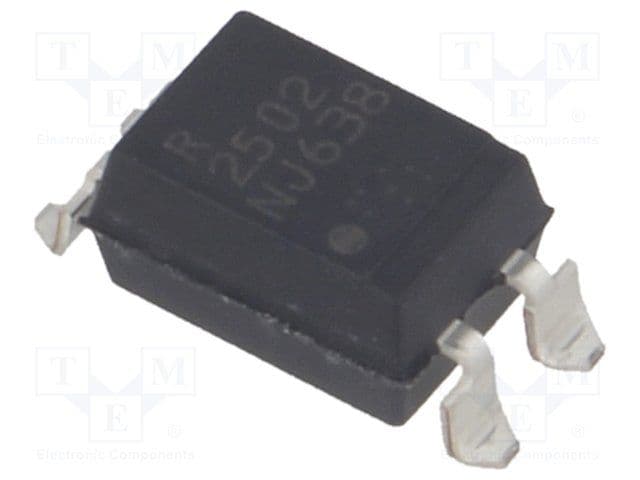

Product Images
