Technical Specifications
Renesas PS2811-4-A technical specifications.
General
| Additional Feature | UL RECOGNIZED |
| Coll-emtr Bkdn Voltage-Min | 40V |
| Current Transfer Ratio-Nom | 200% |
| Dark Current-Max | 100nA |
| Forward Current-Max | 50mA |
| Isolation Voltage-Max | 2.5kV |
| JESD-609 Code | e6 |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Number of Elements | 4 |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Terminal Finish | Tin |
Compliance
| RoHS | Compliant |
Datasheet
Renesas PS2811-4-A Datasheet
Download the complete datasheet for Renesas PS2811-4-A to view detailed technical specifications.
No datasheet is available for this part.

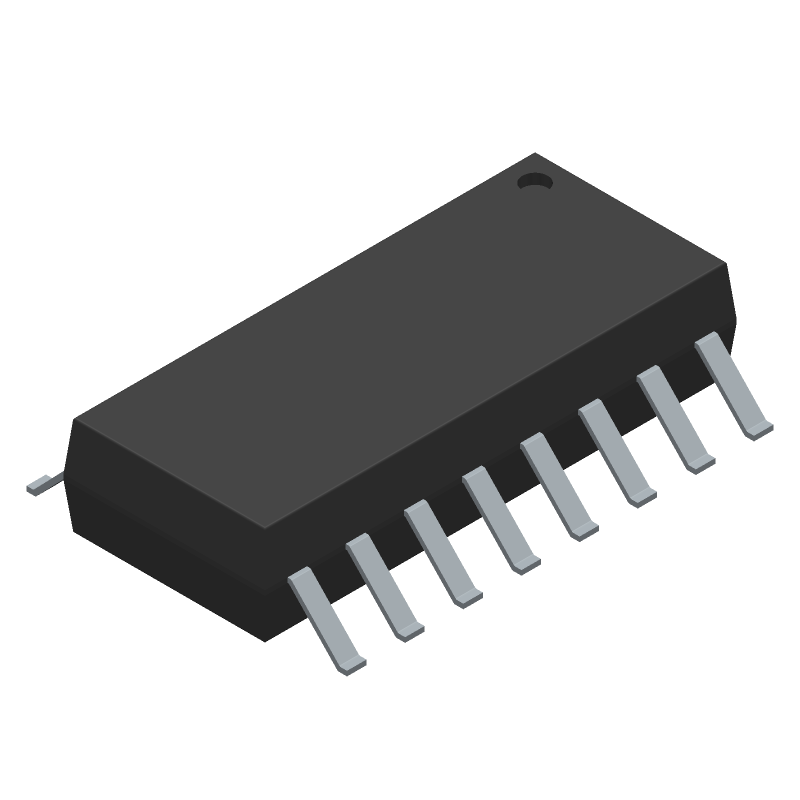

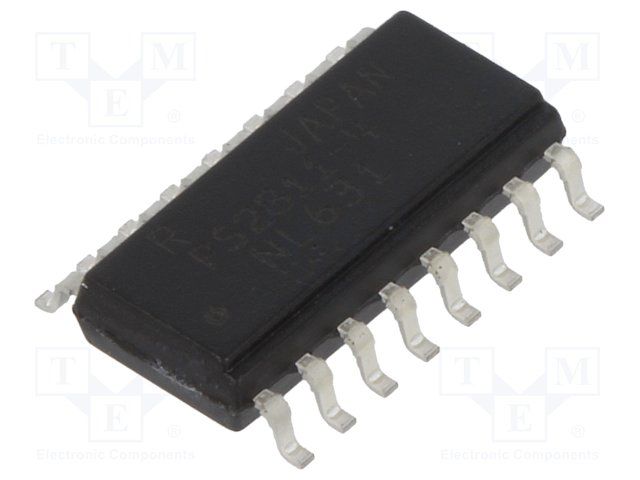

Product Images
