High collector to emitter voltage Darlington output optocoupler featuring a 350V minimum breakdown voltage and 2.5kV maximum isolation. Offers a nominal current transfer ratio of 2000% with a maximum forward current of 50mA and a maximum dark current of 400nA. This 16-pin SSOP component operates across a wide temperature range from -55°C to 100°C and is UL recognized, RoHS compliant, and REACH SVHC compliant with a tin terminal finish.
Quick Jump:
Technical Specifications
Renesas PS2833-1-F3-A technical specifications.
General
Additional Feature
UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min
350V
Current Transfer Ratio-Nom
2000%
Dark Current-Max
400nA
Forward Current-Max
50mA
Isolation Voltage-Max
2.5kV
JESD-609 Code
e6
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Number of Elements
1
Optoelectronic Device Type
DARLINGTON OUTPUT OPTOCOUPLER
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Terminal Finish
Tin
Compliance
RoHS
Compliant
Datasheet
Renesas PS2833-1-F3-A Datasheet
Download the complete datasheet for Renesas PS2833-1-F3-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

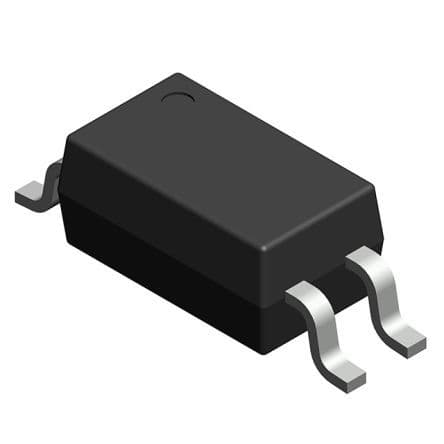

Product Images
