Renesas
PS9513-V-AX
1 Mbps, OPEN COLLECTOR OUTPUT, FOR INTELLIGENT POWER MODULE DRIVE 8-PIN DIP HIGH-SPEED PHOTOCOUPLER
Power100mW
Quick Jump:
Technical Specifications
Renesas PS9513-V-AX technical specifications.
General
Data Rate-Nom
1MBps
Forward Current
25mA
Forward Current-Max
20mA
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
JESD-609 Code
e4
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Number of Elements
1
Number of Functions
1
On-State Current-Max
15mA
Optoelectronic Device Type
LOGIC IC OUTPUT OPTOCOUPLER
Power Dissipation
100mW
Reach SVHC Compliant
Yes
Reverse Voltage
5V
RoHS Compliant
Yes
Terminal Finish
Nickel
Compliance
RoHS
Compliant
Datasheet
Renesas PS9513-V-AX Datasheet
Download the complete datasheet for Renesas PS9513-V-AX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

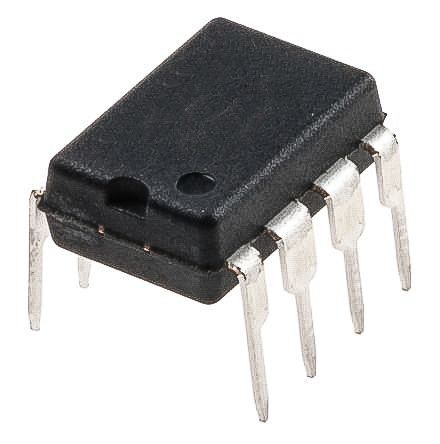

Product Images
