Renesas
PS9587-AX
HIGH CMR, 10 Mbps OPEN COLLECTOR OUTPUT TYPE 8-PIN DIP HIGH-SPEED PHOTOCOUPLER FOR CREEPAGE DISTANCE OF 8 mm
Quick Jump:
Technical Specifications
Renesas PS9587-AX technical specifications.
General
Additional Feature
UL RECOGNIZED
Data Rate-Nom
10MBps
Forward Current-Max
30mA
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
JESD-609 Code
e4
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Number of Circuits
2
Number of Elements
1
Number of Functions
1
On-State Current-Max
25mA
Optoelectronic Device Type
LOGIC IC OUTPUT OPTOCOUPLER
Reach SVHC Compliant
Yes
Reverse Voltage
5V
RoHS Compliant
Yes
Terminal Finish
Nickel
Compliance
RoHS
Compliant
Datasheet
Renesas PS9587-AX Datasheet
Download the complete datasheet for Renesas PS9587-AX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

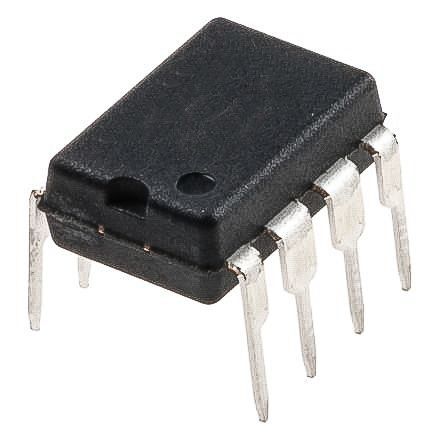

Product Images
