Technical Specifications
Rfmd SZP3026ZSR technical specifications.
General
| Package/Case | SOF |
| Gain | 12dB |
| Max Frequency | 3.8GHz |
| Min Frequency | 3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 6W |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 3V |
| Power Dissipation | 6W |
| RoHS Compliant | Yes |
| Supply Current | 326mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Rfmd SZP3026ZSR Datasheet
Download the complete datasheet for Rfmd SZP3026ZSR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

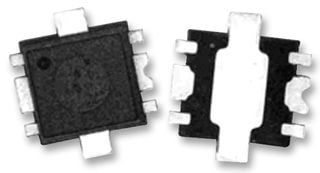

Product Images
