The ICP-N70T104 is a transient voltage suppressor with a voltage rating of 50V and a current rating of 2.5A. It is available in a radial package with a lead-free construction and is suitable for through-hole mounting. The device operates over a temperature range of -55°C to 125°C and is compliant with RoHS regulations. The ICP-N70T104 is available in quantities of 3000 per reel.
PackageRadial
Voltage Rating50V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Rohm ICP-N70T104 technical specifications.
General
| Package/Case | Radial |
| Current Rating | 2.5A |
| DC Cold Resistance | 23mR |
| Diameter | 4mm |
| Height | 0.25inch |
| Lead Free | Lead Free |
| Length | 0.197inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ICP-N |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
Rohm ICP-N70T104 Datasheet
Download the complete datasheet for Rohm ICP-N70T104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

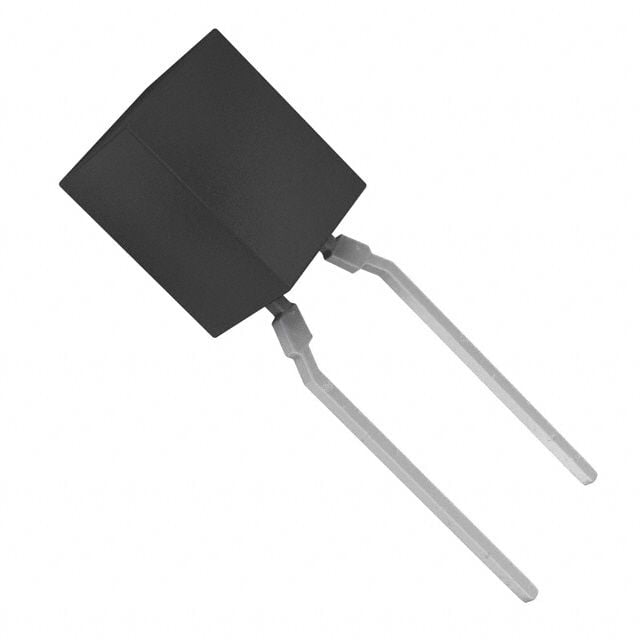

Product Images
