Technical Specifications
Rohm RR274EA-400TR technical specifications.
General
| Average Rectified Current | 500mA |
| Package/Case | SOT-23 |
| Forward Current | 500mA |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Forward Surge Current (Ifsm) | 8A |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 400V |
| Max Surge Current | 8A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 8A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 20ns |
| Reverse Voltage | 400V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RR274EA-400TR Datasheet
Download the complete datasheet for Rohm RR274EA-400TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

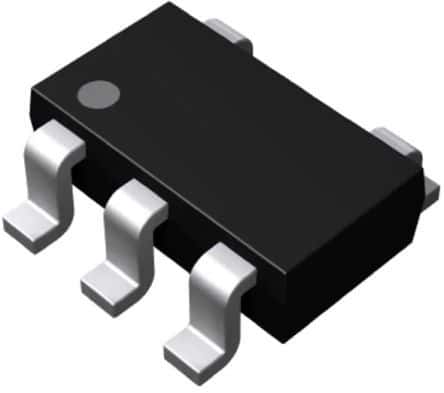

Product Images
