Surface mount standard LED emitter, yellow illumination, featuring a 140° viewing angle and 591nm wavelength. This component offers 63mcd luminous intensity at a 20mA forward current. Encased in a compact 0805 (2012 metric) minimold package with a clear, diffused rectangular lens, it operates within a -30°C to 85°C temperature range. Lead-free and RoHS compliant, it is supplied on tape and reel.
Package0805
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm SML-212YTT86 technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Color | Yellow |
| Forward Current | 20mA |
| Height | 0.9mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 2mm |
| Lens Color | Colorless |
| Lens Style | Diffused, Colorless, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 63mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Viewing Angle | 140° |
| Wavelength | 591nm |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm SML-212YTT86 Datasheet
Download the complete datasheet for Rohm SML-212YTT86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

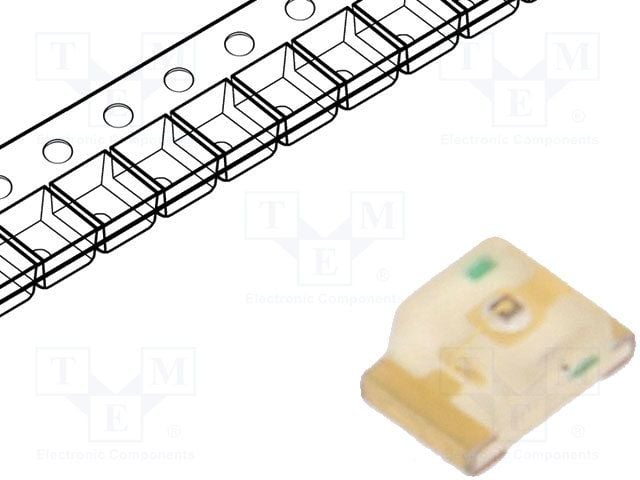

Product Images
