Surface mount single color LED emitter, yellow illumination, featuring a 140° viewing angle and 585nm wavelength. This component offers 6.3mcd luminous intensity at a 20mA forward current, housed in a compact 0603 (1608 metric) package with colorless, clear diffused lens. Operating between -30°C and 85°C, it is lead-free and RoHS compliant.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm SML-310YTT86 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Yellow |
| Forward Current | 20mA |
| Height | 0.9mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Colorless, Clear |
| Lens Style | Rectangular, Diffused, Colorless, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 6.3mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Viewing Angle | 140° |
| Wavelength | 585nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm SML-310YTT86 Datasheet
Download the complete datasheet for Rohm SML-310YTT86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

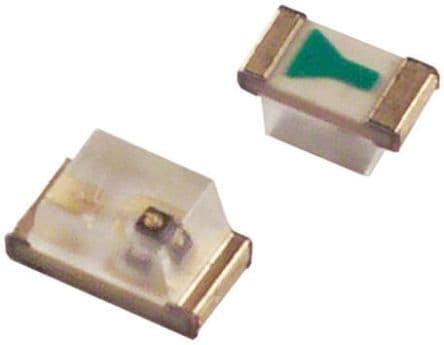

Product Images
