Panel-mount male receptacle, Mini-SMP straight connector, 50 Ohm impedance, designed for high-frequency applications up to 65GHz. Features brass body and contact material with gold plating for superior conductivity and durability. Operates within a temperature range of -55°C to 155°C, with a voltage rating of 325V and 100 mating cycles. Dielectric is PTFE, and termination is solder. RoHS compliant.
Frequency65GHz
Voltage Rating325V
Quick Jump:
Technical Specifications
Rosenberger 18S101-40ML5 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Dielectric Material | PTFE |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 65GHz |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Number of Ports | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 325V |
Compliance
| RoHS | Compliant |
Datasheet
Rosenberger 18S101-40ML5 Datasheet
Download the complete datasheet for Rosenberger 18S101-40ML5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

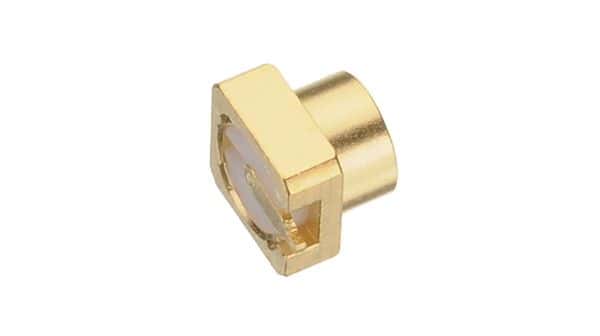

Product Images
