Frequency18GHz
PackageSMA
MountingPanel, Bulkhead
Quick Jump:
Technical Specifications
Rosenberger 32K101-KH0L5 technical specifications.
General
| Body Material | Copper, Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Dielectric Material | PTFE |
| Impedance | 50R |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Bulkhead |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rosenberger 32K101-KH0L5 Datasheet
Download the complete datasheet for Rosenberger 32K101-KH0L5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

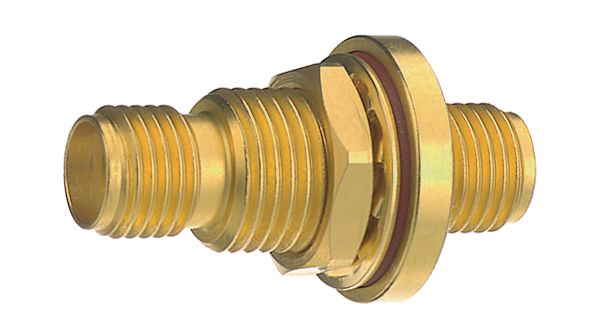

Product Images
