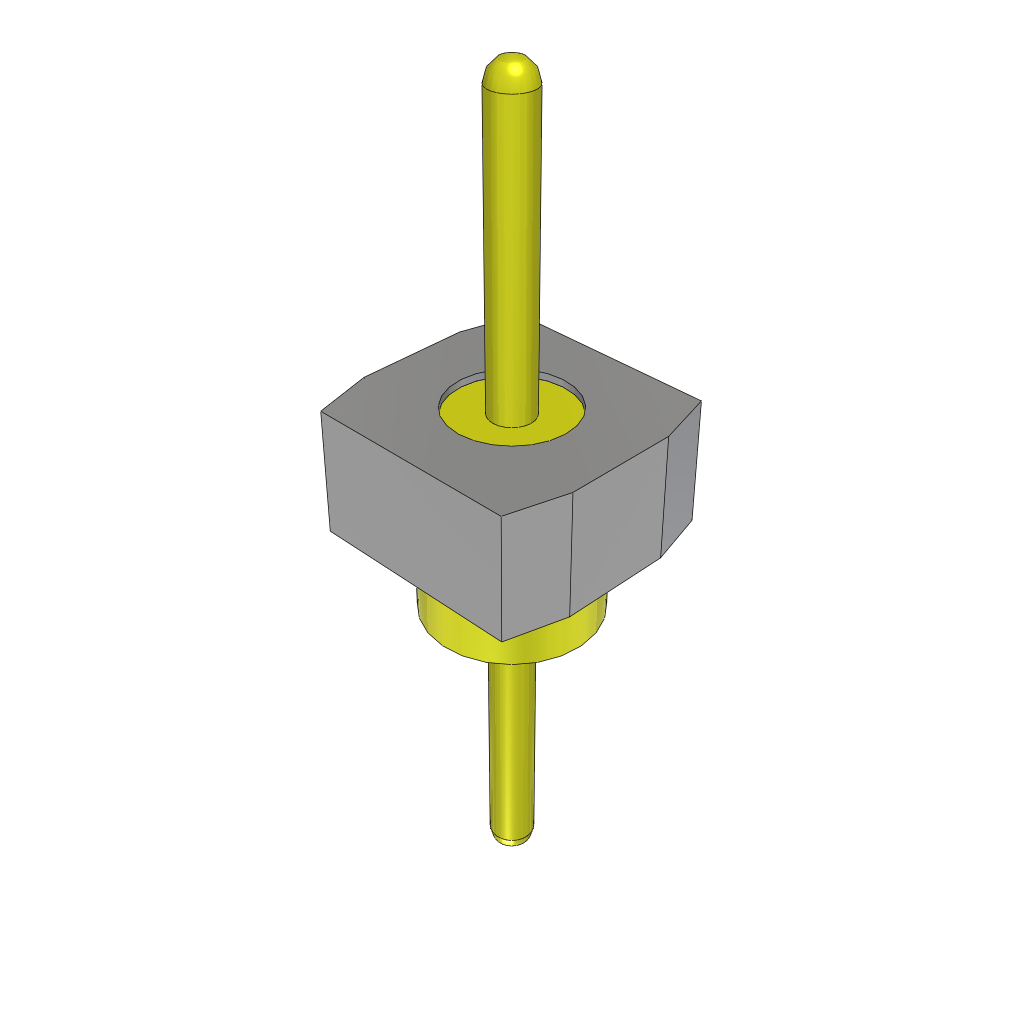

Unshrouded header, male, straight orientation, with 1 position and 1 contact. Features bronze contacts with tin plating, a 0.122-inch mating length, and a 1A maximum current rating. Operates within a -55°C to 125°C temperature range. Black housing and color, with a 2.54mm row and contact spacing. Through-hole mounting with solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BBL-101-T-F technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Mating Length | 0.122inch |
| Contact Plating | Tin |
| Gender | Male |
| Height | 2.16mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 2.54mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Series | BBL |
| Termination | Solder |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
