Unshrouded header with 9 positions and 1 row, featuring a 2.54mm pitch and straight, top-entry orientation. This male connector utilizes bronze and brass contacts with gold plating for reliable interconnection, offering a contact mating length of 0.105 inches. Designed for through-hole mounting with solder termination, it operates within a temperature range of -55°C to 125°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BBL-109-G-E technical specifications.
General
Color
Black
Contact Material
Bronze, Brass
Contact Mating Length
0.105inch
Contact Plating
Gold
Depth
2.54mm
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
22.86mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
BBL
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec BBL-109-G-E Datasheet
Download the complete datasheet for Samtec BBL-109-G-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

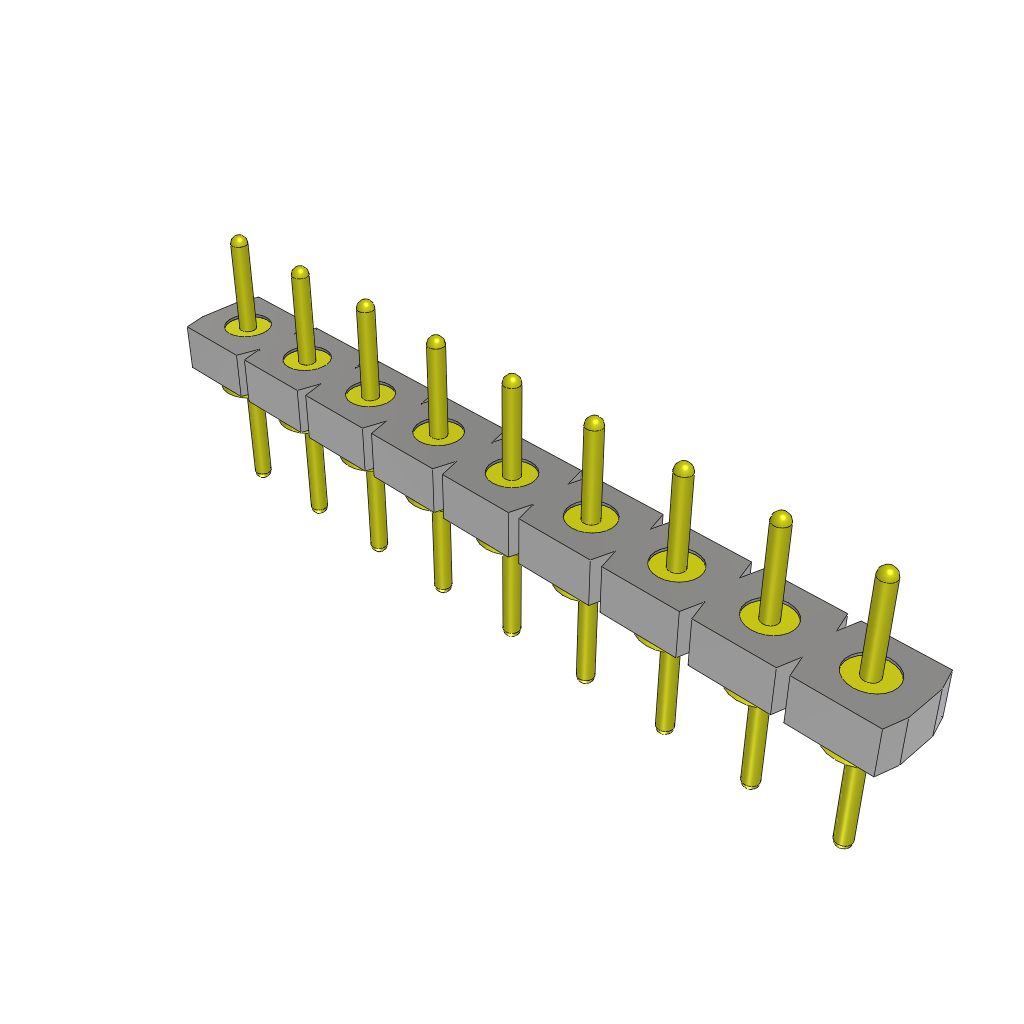

Product Images
