3-position, 1-row shrouded header with 2.54mm pitch, designed for side entry and right-angle through-hole mounting. Features gold-plated bronze female socket contacts with a square contact shape, rated for a maximum current of 5.9A and a maximum AC voltage of 475V. Operating temperature range is -55°C to 125°C, with a UL94 V-0 flammability rating. The black polymer housing and insulation ensure durability.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec BCS-103-L-S-HE technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Depth
8.13mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
7.62mm
Max Current Rating
5.9A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
450V
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Horizontal
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Tiger Claw™ BCS
Termination
Solder
Voltage Rating (AC)
475V
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
Samtec BCS-103-L-S-HE Datasheet
Download the complete datasheet for Samtec BCS-103-L-S-HE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

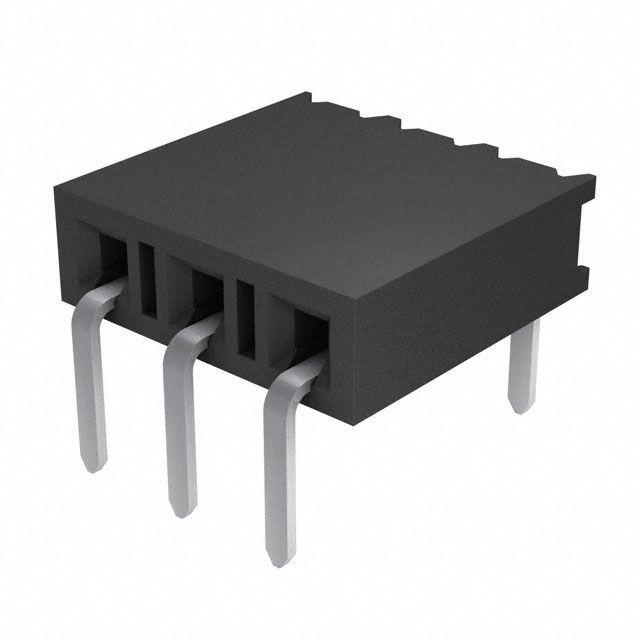

Product Images
