Technical Specifications
Samtec BCS-112-L-S-HE technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 5.9A |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Tiger Claw™ BCS |
| Termination | Solder |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec BCS-112-L-S-HE Datasheet
Download the complete datasheet for Samtec BCS-112-L-S-HE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

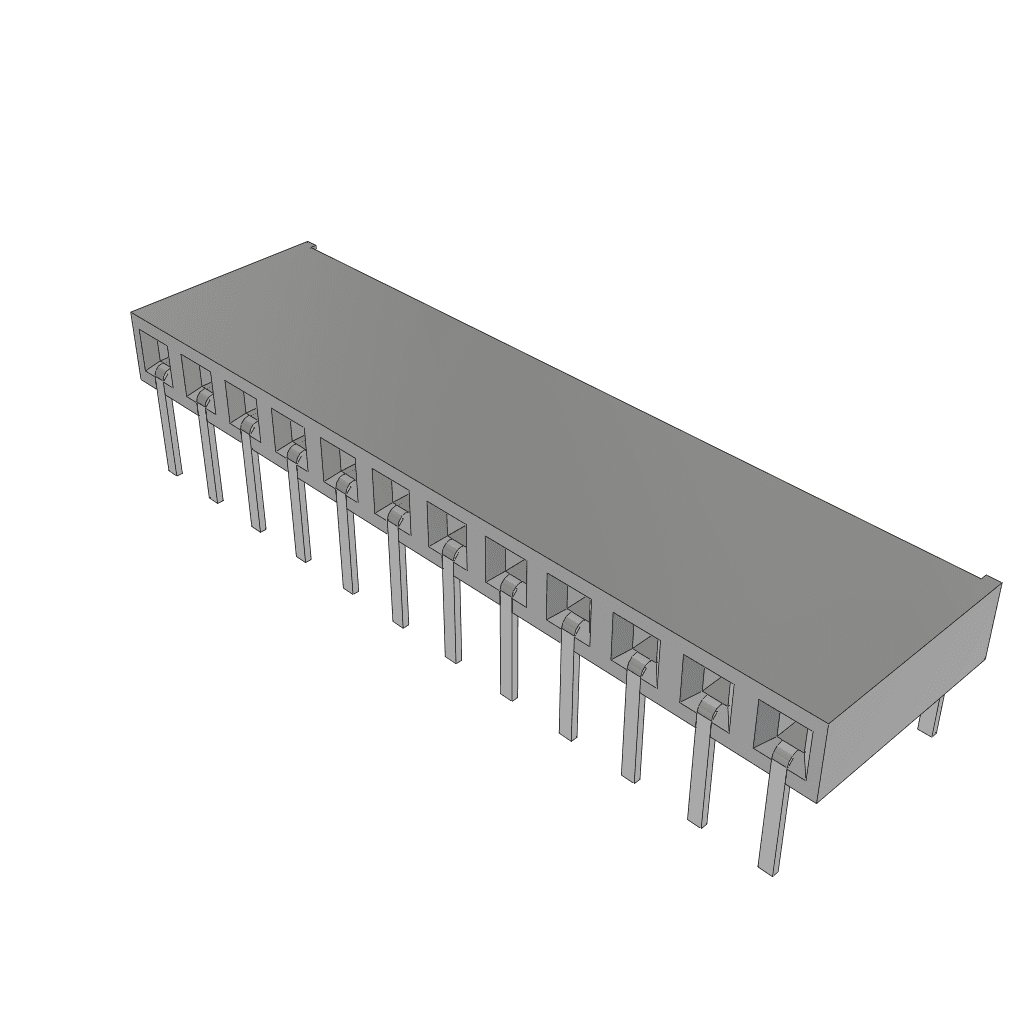

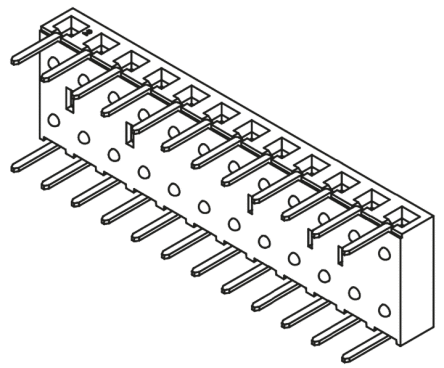

Product Images
