120-position, 2-row shrouded header with 0.5mm pitch for board-to-board applications. Features straight, surface-mount termination with gold-plated bronze contacts. Offers a 1.25A max current rating and 125V max AC voltage rating. Operates within a -55°C to 125°C temperature range, with a mated stacking height of 5mm. Packaged on tape and reel for automated assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec BTH-060-01-L-D-A-K-TR technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 5.97mm |
| Gender | Male |
| Length | 35mm |
| Mated Stacking Heights | 5mm |
| Max Current Rating | 1.25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Surface Mount |
| Number of Contacts | 120 |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | BTH |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec BTH-060-01-L-D-A-K-TR Datasheet
Download the complete datasheet for Samtec BTH-060-01-L-D-A-K-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

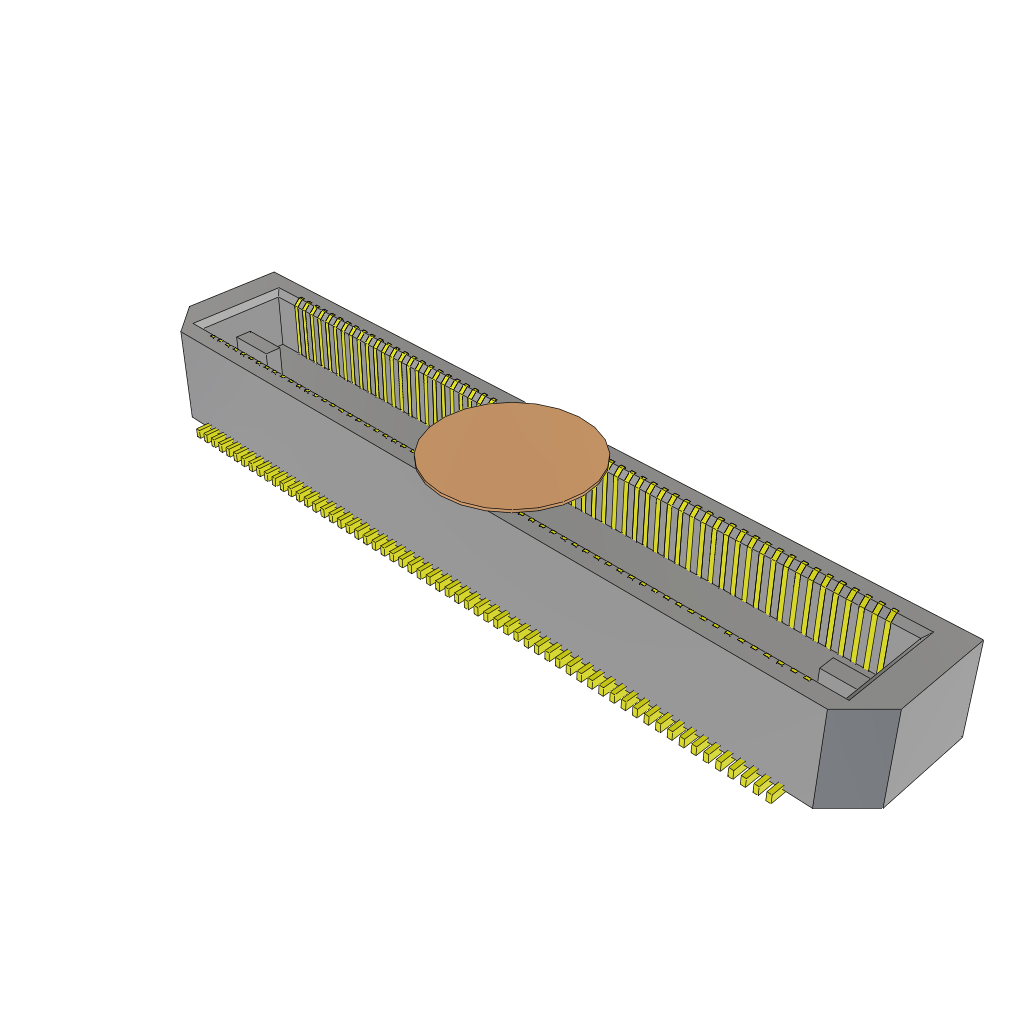

Product Images
