40-position, single-row socket strip connector with a 2.54mm pitch. Features tin-plated bronze female socket contacts with a square shape and tin mating finish. Insulation material is PBT in black, with a black housing and a UL94 V-0 flammability rating. Designed for through-hole mounting with solder termination, operating temperature range of -55°C to 105°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec CES-140-01-T-S technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 5.08mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 102mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CES |
| Termination | Solder |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec CES-140-01-T-S Datasheet
Download the complete datasheet for Samtec CES-140-01-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

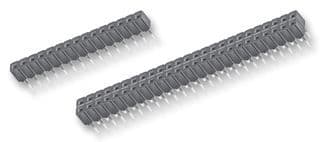

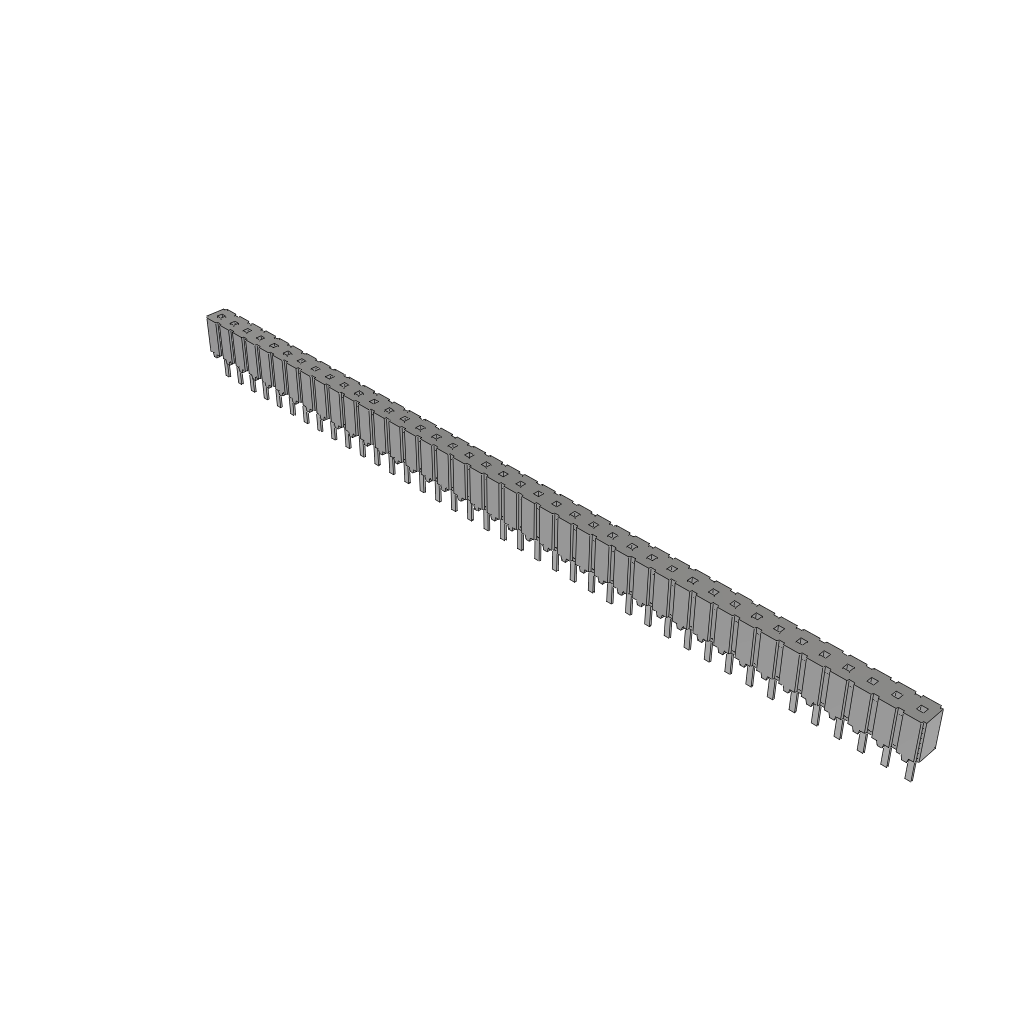

Product Images
