24-position, 2-row straight shrouded socket strip with 1mm pitch. Features gold-plated bronze female socket contacts with a square contact shape. Maximum current rating of 3A, operating temperature range of -55°C to 125°C. UL94 V-0 flammability rating, lead-free, and RoHS compliant. SMD termination with solder style, supplied on tape and reel.
Quick Jump:
Technical Specifications
Samtec CLM-112-02-F-D-BE-K-TR technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 2.54mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 12.43mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CLM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec CLM-112-02-F-D-BE-K-TR Datasheet
Download the complete datasheet for Samtec CLM-112-02-F-D-BE-K-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

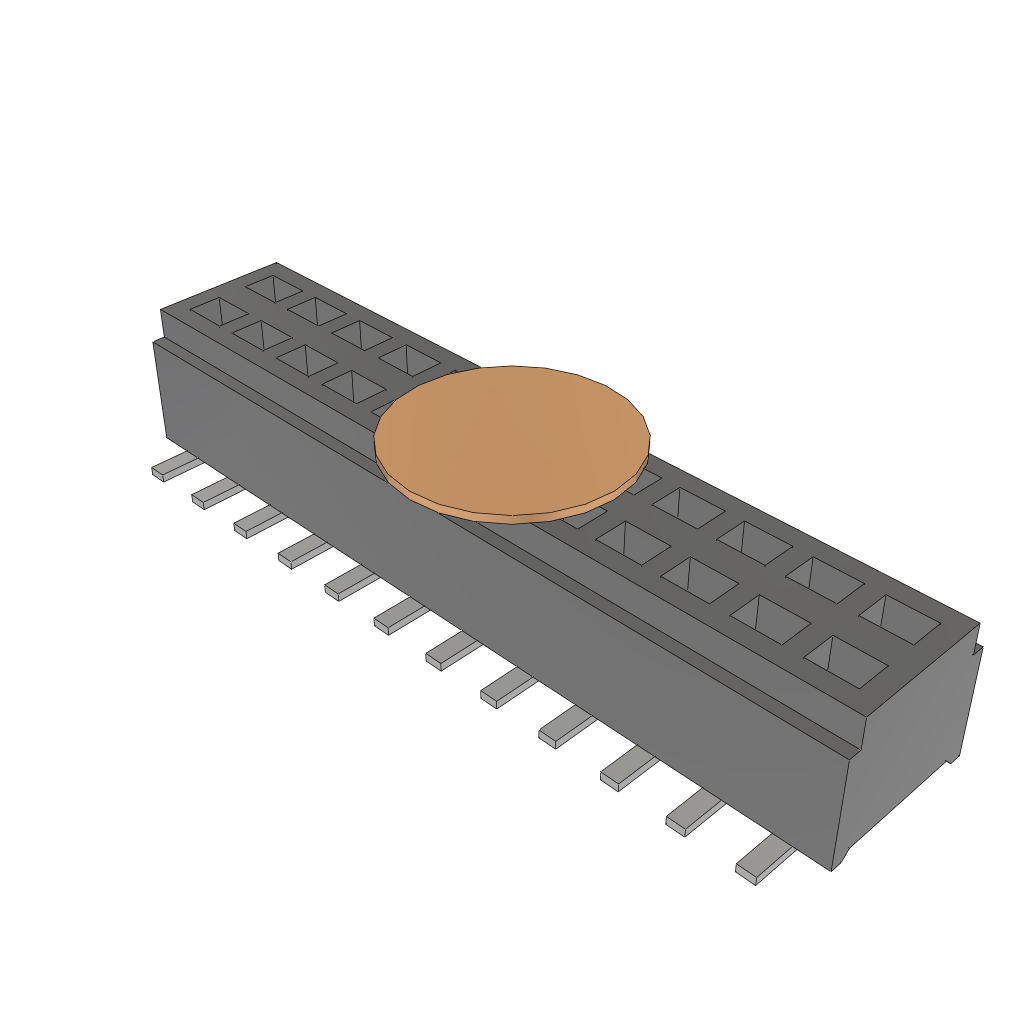

Product Images
