6-position, 2-row shrouded header with 1.27mm pitch for board-to-board applications. Features female socket contacts made from bronze with gold plating for reliable mating. Surface mount termination with bottom entry and solder style. Rated for 240V AC and 330V DC, operating between -55°C and 125°C. Insulation is black polymer with a UL94 V-0 flammability rating. RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec CLP-103-02-F-D-BE-A technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Packaging | Bag |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CLP |
| Termination | Solder |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 330V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec CLP-103-02-F-D-BE-A Datasheet
Download the complete datasheet for Samtec CLP-103-02-F-D-BE-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

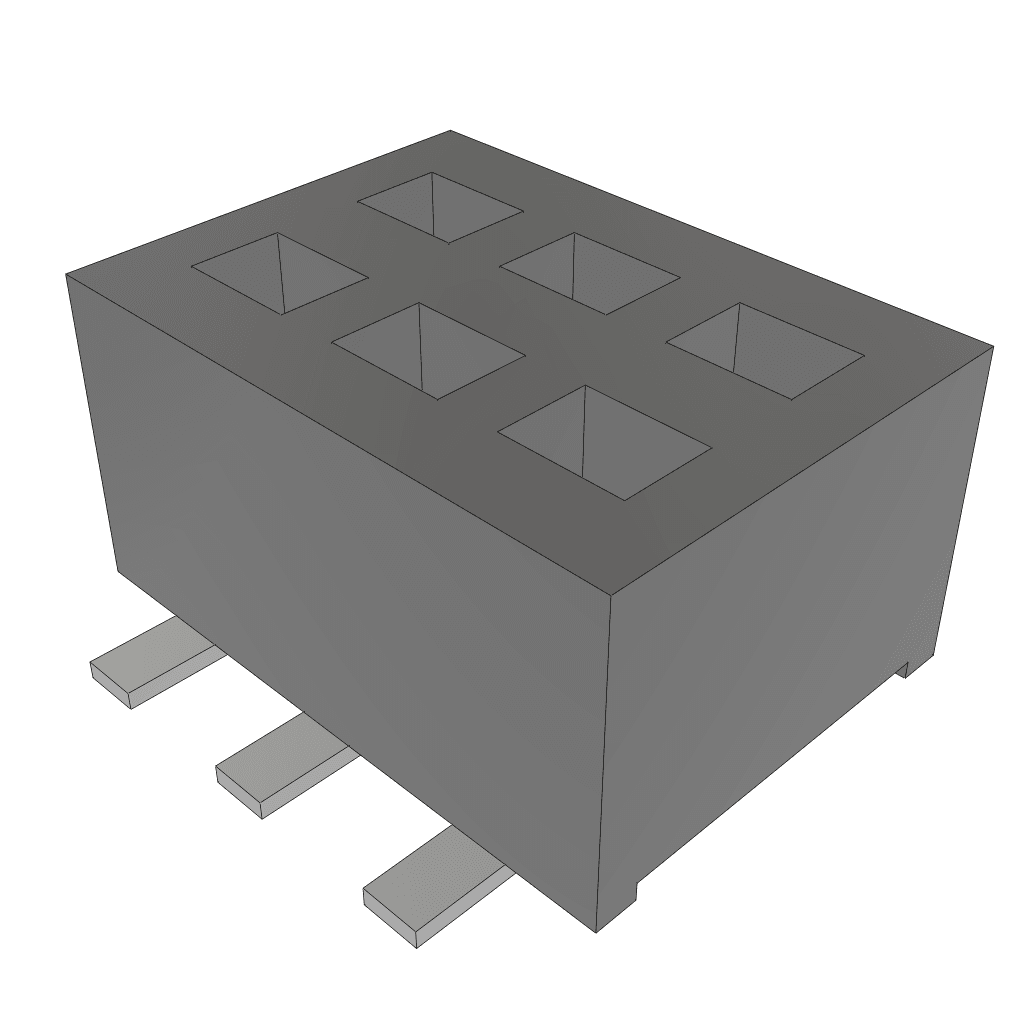

Product Images
