14-position, 2-row socket strip with 1.27mm pitch, featuring female socket contacts made of bronze with gold plating for mating. This surface mount component offers a bottom entry solder termination and is rated for 240V AC and 330V DC. Constructed with a black polymer insulation material, it boasts a UL94 V-0 flammability rating and operates within a temperature range of -55°C to 125°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec CLP-107-02-F-D-BE technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Gender
Receptacle
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Packaging
Rail/Tube
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CLP
Termination
Solder
Voltage Rating (AC)
240V
DC Rated Voltage
330V
Compliance
RoHS
Compliant
Datasheet
Samtec CLP-107-02-F-D-BE Datasheet
Download the complete datasheet for Samtec CLP-107-02-F-D-BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

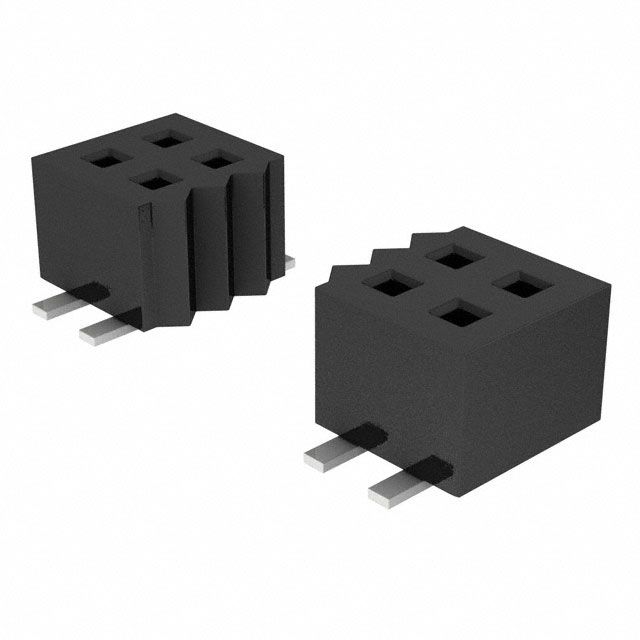

Product Images
