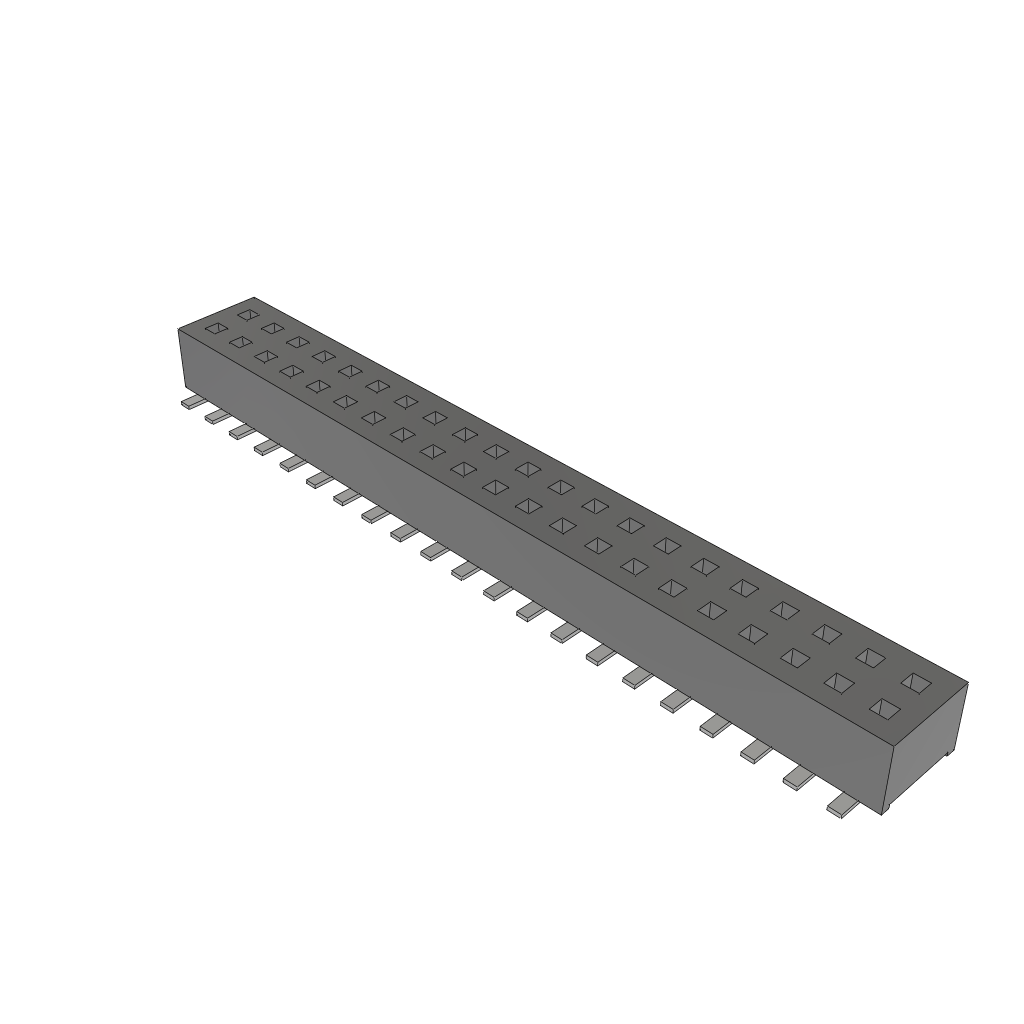

Surface mount socket strip with 42 positions and 2 rows, featuring a 1.27mm pitch. This female socket receptacle utilizes bronze contacts with gold plating for mating, offering a square contact shape. Rated for 240V AC and 330V DC, it operates within a temperature range of -55°C to 125°C. Constructed with a black polymer insulation material, it meets UL94 V-0 flammability rating and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec CLP-121-02-F-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
2.26mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
27.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
42
Number of Positions
42
Number of Rows
2
Packaging
Bulk
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CLP
Termination
Solder
Voltage Rating (AC)
240V
DC Rated Voltage
330V
Width
3.05mm
Compliance
RoHS
Compliant
Datasheet
Samtec CLP-121-02-F-D Datasheet
Download the complete datasheet for Samtec CLP-121-02-F-D to view detailed technical specifications.
