64-position, 2-row, 2mm pitch shrouded socket strip with vertical, top-entry, SMD termination. Features gold-plated bronze female socket contacts with a square shape, ensuring reliable mating. Constructed with a black polymer insulation material and housing, rated UL94 V-0 for flammability. Operates within a temperature range of -55°C to 125°C, with a 2.13mm height and 4mm width. This lead-free, RoHS-compliant component is supplied in a tube.
Quick Jump:
Technical Specifications
Samtec CLT-132-02-L-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
2.13mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
64mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
64
Number of Positions
64
Number of Rows
2
Orientation
Vertical
Packaging
Rail/Tube
Pitch
2mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CLT
Termination
Solder
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Samtec CLT-132-02-L-D Datasheet
Download the complete datasheet for Samtec CLT-132-02-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

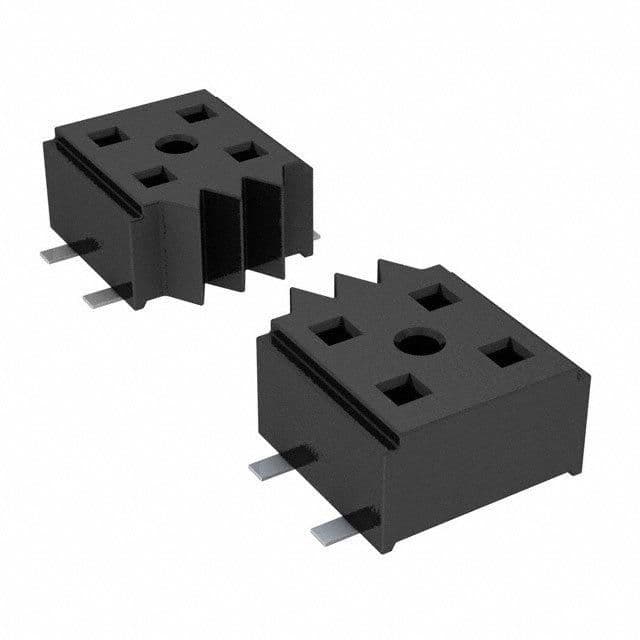

Product Images
