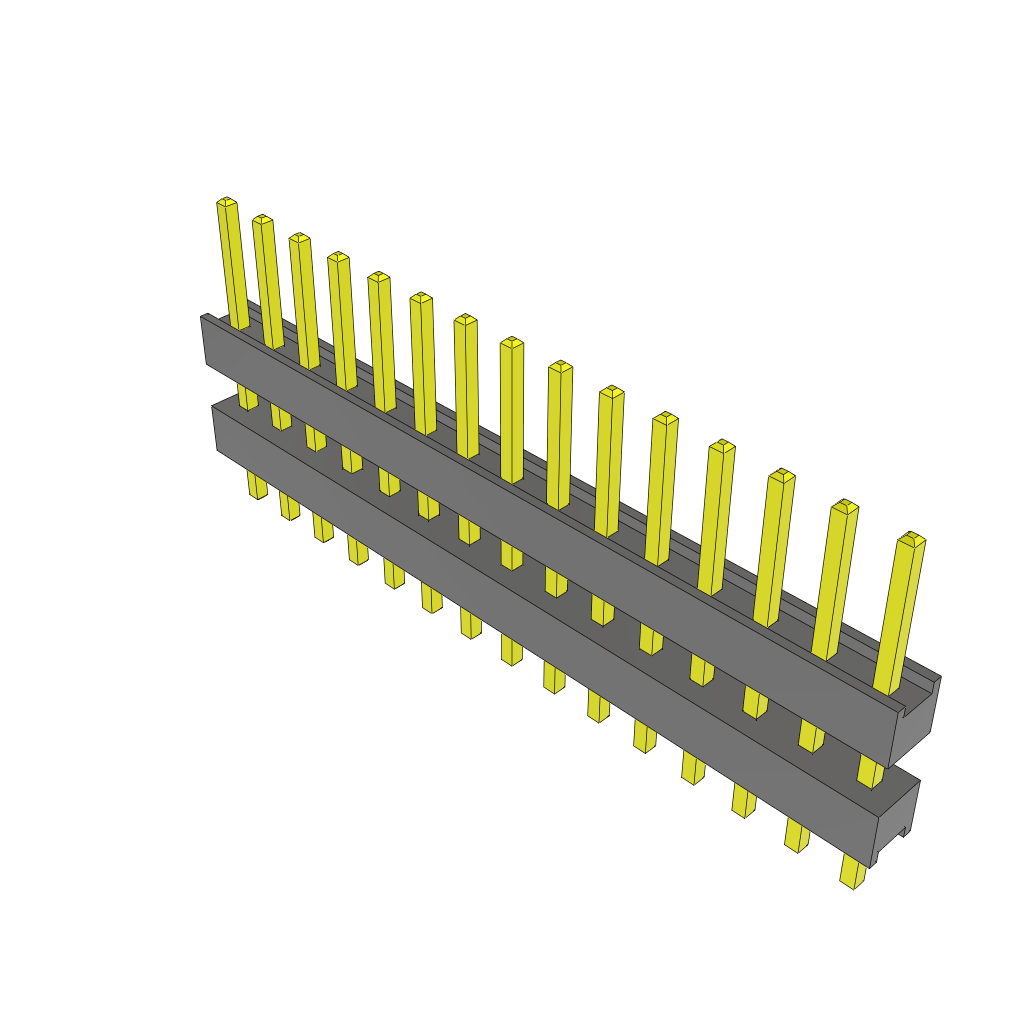

The DW-15-15-S-S-290 is a 15-pin shrouded header from Samtec, designed for through hole mounting. It features a 2.54mm pitch and 15 gold-plated contacts. The header is available in bulk packaging and is compliant with RoHS regulations. Operating temperature range is not specified.
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Samtec DW-15-15-S-S-290 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Samtec DW-15-15-S-S-290 technical specifications.
General
| Color | Black |
| Contact Plating | Gold |
| Gender | Male |
| Mount | Through Hole |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Flex Stack, DW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec DW-15-15-S-S-290 Datasheet
Download the complete datasheet for Samtec DW-15-15-S-S-290 to view detailed technical specifications.
