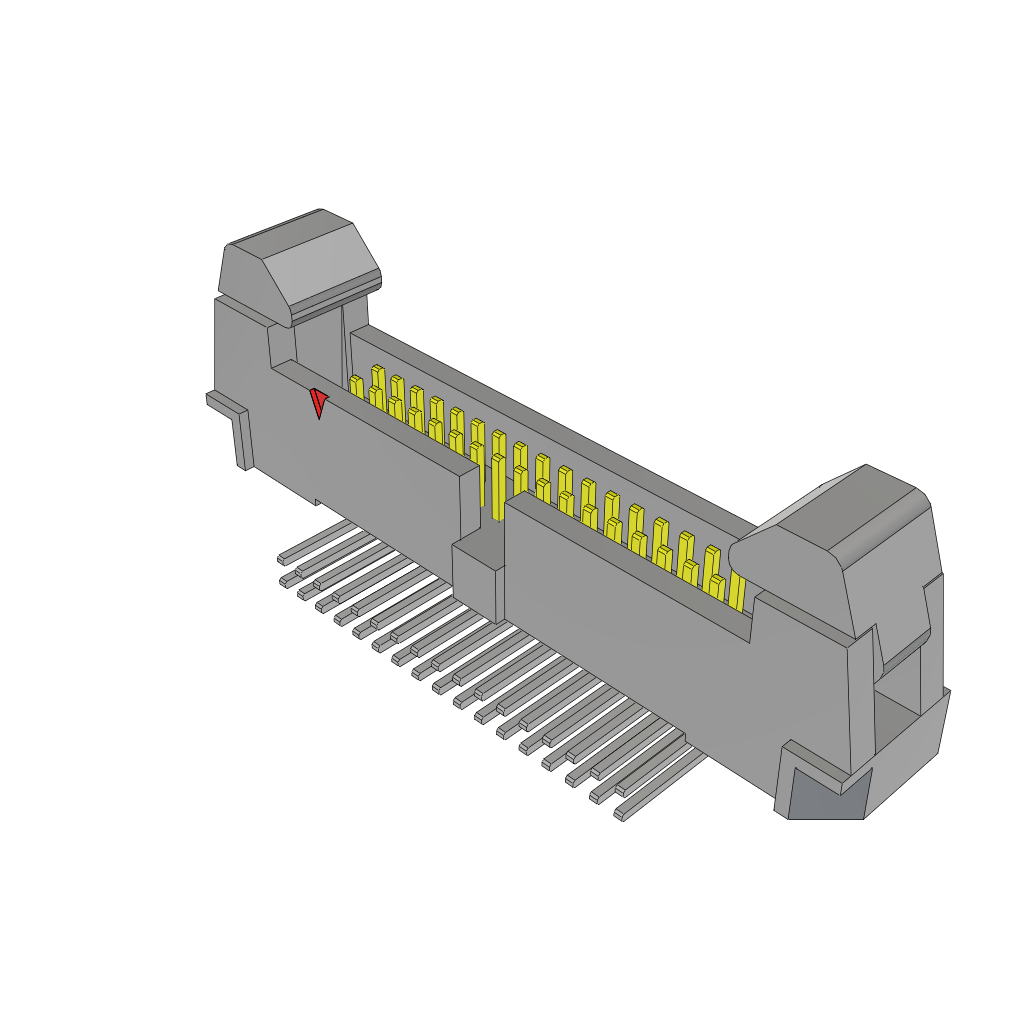

34-position, 2-row shrouded ejector header with a 0.05-inch pitch. Features male pin contacts with gold plating and bronze material, offering a 0.12-inch mating length. Side entry, right-angle, through-hole termination with a black polymer housing. Operating temperature range of -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec EHF-117-01-F-D-RA technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Mating Length
0.12inch
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Gender
Male
Height
6.67mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
36.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
34
Number of Positions
34
Number of Rows
2
Packaging
Rail/Tube
Pitch
0.05inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.05inch
Series
EHF
Termination
Solder
Width
8.26mm
Compliance
RoHS
Compliant
Datasheet
Samtec EHF-117-01-F-D-RA Datasheet
Download the complete datasheet for Samtec EHF-117-01-F-D-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
