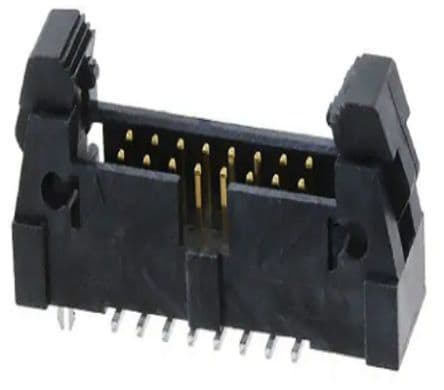

16-position, 2-row shrouded ejector header with 2mm pitch. Features straight, top-entry, thru-hole mounting with solder termination. Male pin contacts made of bronze with gold plating and a mating length of 0.12 inches. Black polymer housing with UL94 V-0 flammability rating. Rated for 3A max current and operates between -55°C and 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec EHT-108-01-S-D technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Mating Length | 0.12inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 7.62mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 29.79mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | EHT |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec EHT-108-01-S-D Datasheet
Download the complete datasheet for Samtec EHT-108-01-S-D to view detailed technical specifications.
