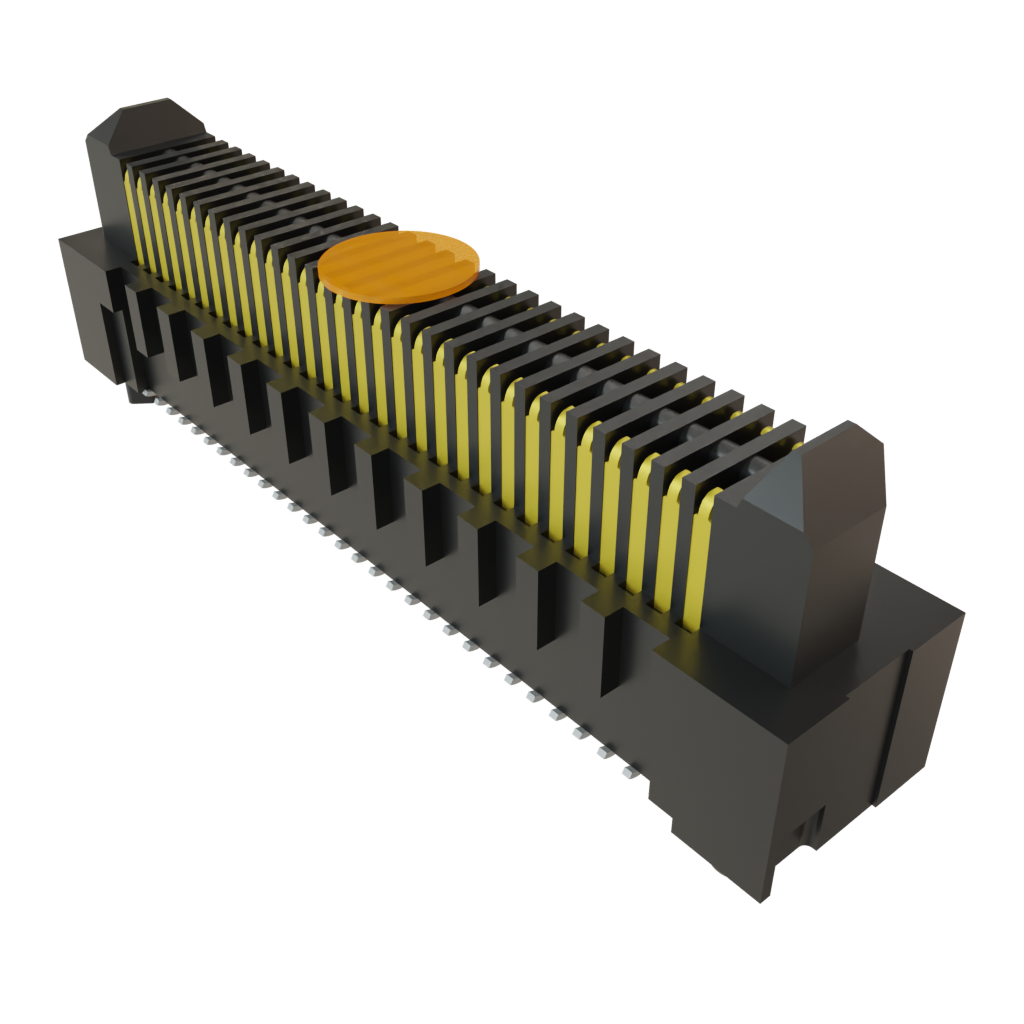

The ERM8-030-05.0-L-DV-K-TR is a micro high speed terminal strip from Samtec, featuring 60 HDR contacts with a 0.8mm pitch and 2 rows. It is designed for surface mount applications and can operate between -55°C and 125°C. The terminal strip has a maximum current rating of 2.2A per contact and a maximum voltage rating of 318VDC or 225VAC. The component measures 8.91mm in height and is available from Samtec.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec ERM8-030-05.0-L-DV-K-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Type | Micro High Speed Terminal Strip |
| Gender | HDR |
| Number of Contacts | 60 |
| Terminal Pitch | 0.8mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Surface Mount |
| Max Current Rating | 2.2/ContactA |
| Max Voltage Rating | 318VDC|225VAC |
| Height | 8.91mm |
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
