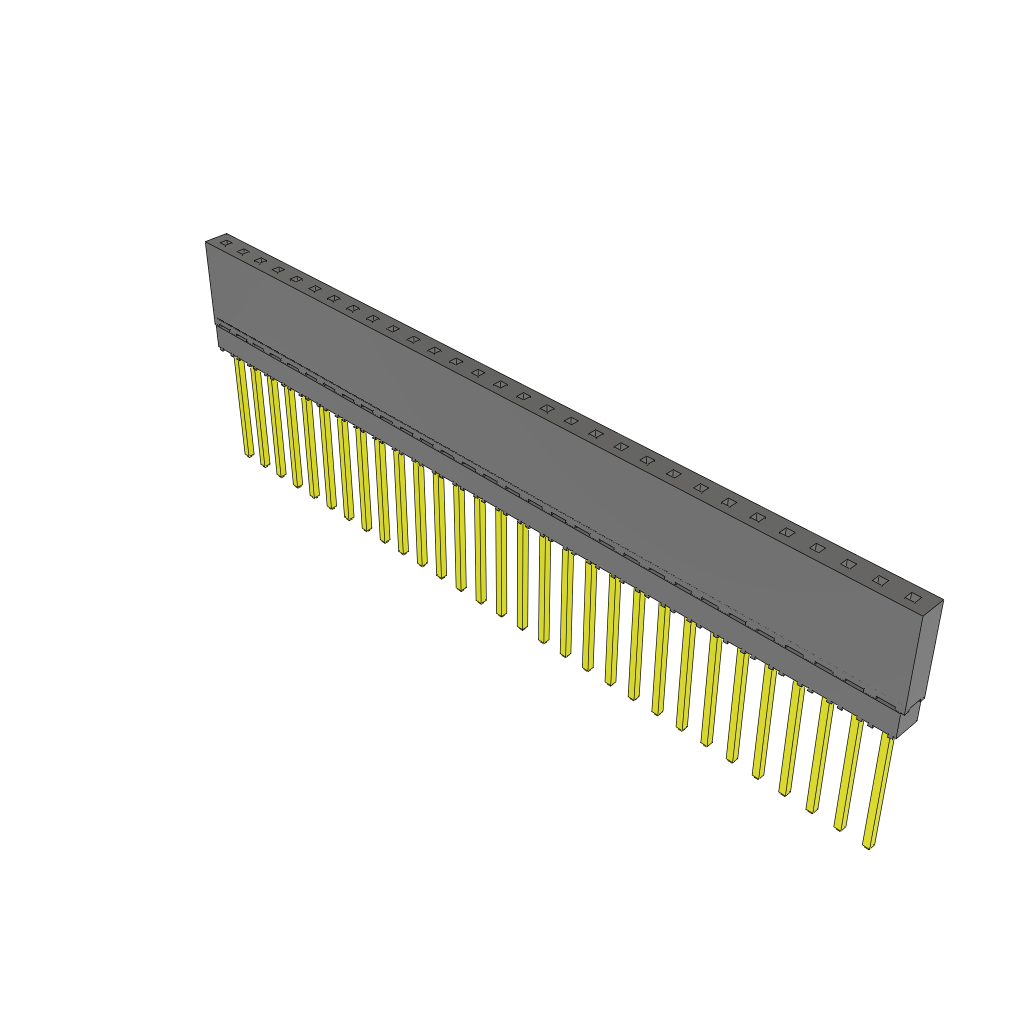

This Samtec ESQ-130-39-G-S connector features a thermoplastic insulator and gold-plated contacts with a nickel barrier. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The connector is rated for a signal current of 5.7A and is suitable for commercial reliability applications.
MountingSTRAIGHT
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Samtec ESQ-130-39-G-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Samtec ESQ-130-39-G-S technical specifications.
General
| Max Operating Temperature | 125 |
| Min Operating Temperature | -55 |
| Termination Type | SOLDER |
| Insulator Material | THERMOPLASTIC |
| Total Number of Contacts | 30 |
| Contact Gender | FEMALE |
| Reliability | COMMERCIAL |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 5.7 |
| Insulator Color | BLACK |
| Number Of PCB Rows | 1 |
| Plating Thickness | 20u |
| Number Of Connectors | ONE |
| Contact Finish Termination | Gold (Au) - with Nickel (Ni) barrier |
Compliance
| RoHS | Yes |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | True |
Datasheet
Samtec ESQ-130-39-G-S Datasheet
Download the complete datasheet for Samtec ESQ-130-39-G-S to view detailed technical specifications.
