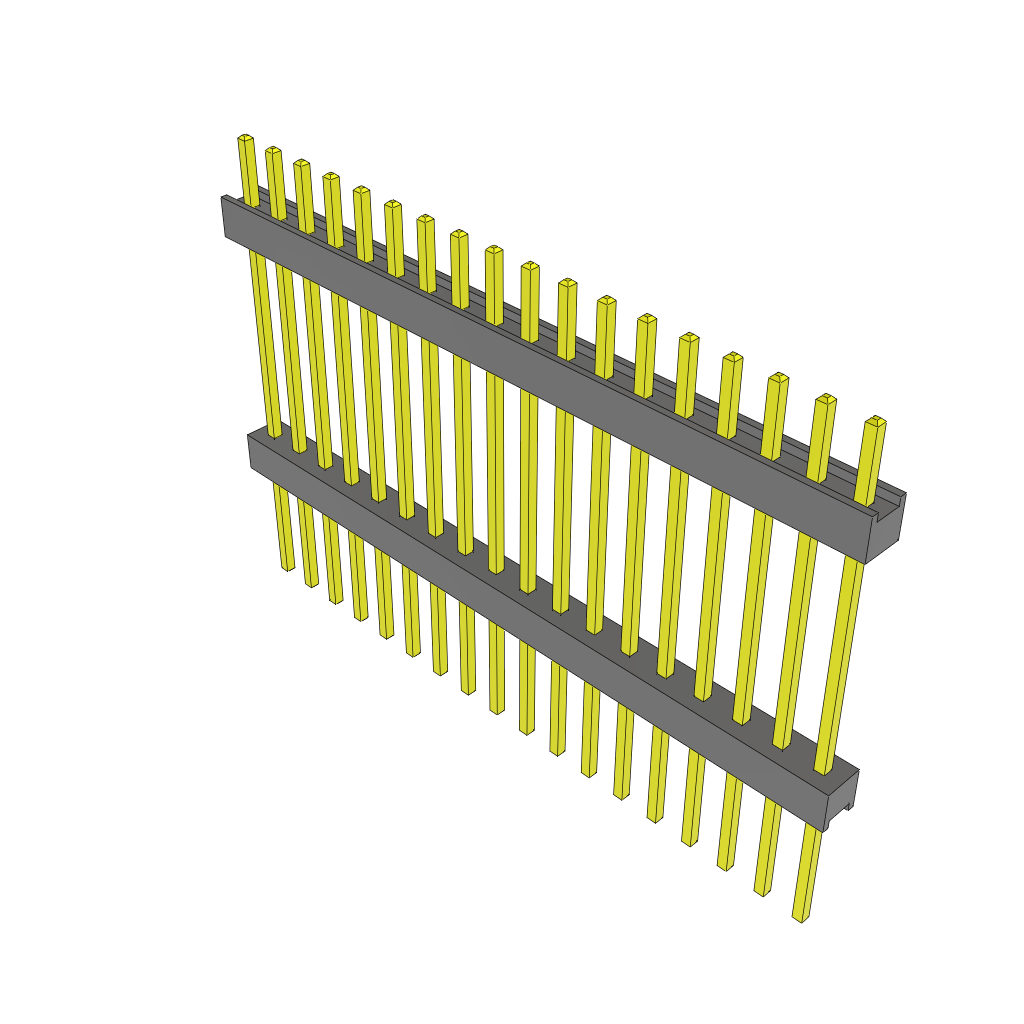

The EW-18-13-T-S-750 is a board stacker connector with 18 HDR contacts, a terminal pitch of 2.54mm, and a termination method of solder. It has a maximum operating temperature range of -55°C to 105°C and can handle a maximum current rating of 3A per contact. The connector has a straight body orientation and a height of 22.86mm, with a mating length of 3.81mm. It is designed for through hole mounting and is suitable for use in a variety of applications.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec EW-18-13-T-S-750 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 18 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 22.86mm |
| Mating Length | 3.81mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec EW-18-13-T-S-750 Datasheet
Download the complete datasheet for Samtec EW-18-13-T-S-750 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
