Flat ribbon cable assembly featuring 10 positions and 2 rows, with a 1.27mm connector pitch. Utilizes IDC receptacle connectors on both ends, terminated via Insulation Displacement Technology (IDT). Constructed with 30AWG flat flex wire and a grey polybutylene jacket, offering a 0.635mm cable pitch. Rated for 500mA maximum current and operates within a temperature range of -40°C to 105°C. Gold-plated copper contacts ensure reliable connectivity.
Quick Jump:
Technical Specifications
Samtec FFSD-05-D-06.00-01-N technical specifications.
General
Cable Pitch
0.635mm
Color
Grey
Connector Pitch
1.27mm
Connector Type A
IDC, Receptacle
Connector Type B
IDC, Receptacle
Contact Material
Copper
Contact Plating
Gold
Lead Free
Lead Free
Material
Polybutylene
Max Current Rating
500mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Tiger Eye™ FFSD
Shielding
Unshielded
Termination
IDT
Wire/Cable Gauge
30AWG
Wire/Cable Type
Flat Flex, Flat
Compliance
RoHS
Compliant
Datasheet
Samtec FFSD-05-D-06.00-01-N Datasheet
Download the complete datasheet for Samtec FFSD-05-D-06.00-01-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

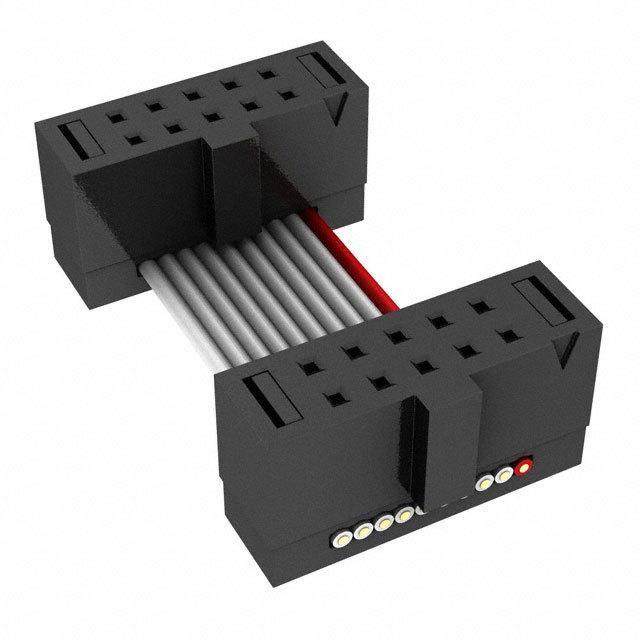

Product Images
