Samtec
FFSD-17-D-08.00-01-N

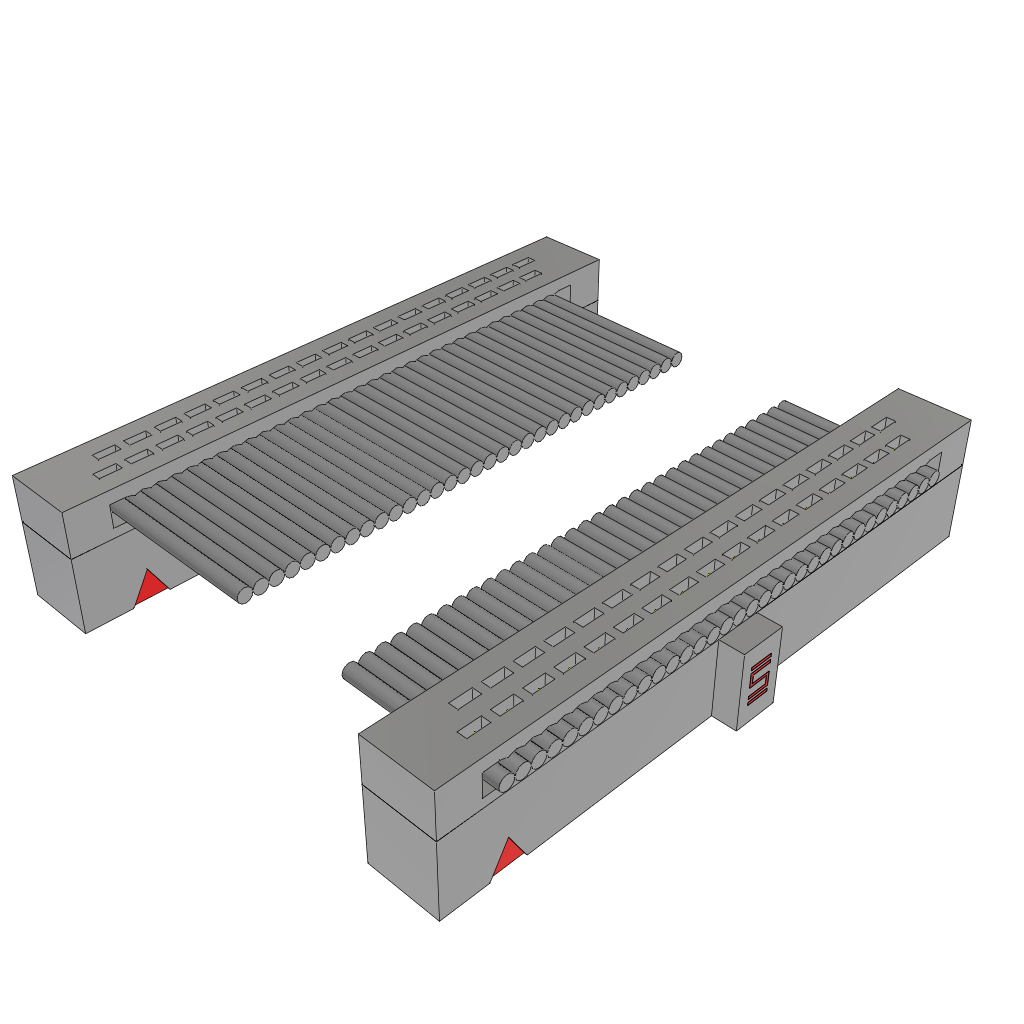

Cable Assembly 0.203m 30AWG 1.27mm 34 to 34 POS IDC Connector to IDC Connector F-F TIGER EYE™ Bulk
Quick Jump:
Technical Specifications
Samtec FFSD-17-D-08.00-01-N technical specifications.
General
Cable Pitch
0.635mm
Color
Grey
Connector Pitch
1.27mm
Connector Type A
IDC, Receptacle
Connector Type B
IDC, Receptacle
Contact Material
Copper
Contact Plating
Gold
Gender
Female
Max Current Rating
500mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of Contacts
34
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
IDT
Wire/Cable Gauge
30AWG
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Samtec FFSD-17-D-08.00-01-N Datasheet
Download the complete datasheet for Samtec FFSD-17-D-08.00-01-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
