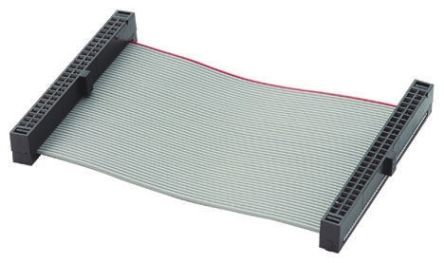

The Samtec FFSD-25-D-04.00-01-N is a 50-position, 2-row IDC receptacle cable assembly with a current rating of 2.3A and a cable pitch of 0.635mm. It is available in bulk packaging and is compliant with RoHS regulations. The assembly features gold-plated contacts and is not radiation hardened. It has a length of 100mm and is designed for use in IDC receptacle applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec FFSD-25-D-04.00-01-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Samtec FFSD-25-D-04.00-01-N technical specifications.
| Cable Pitch | 0.635mm |
| Color | Grey |
| Connector Pitch | 1.27mm |
| Connector Type A | IDC, Receptacle |
| Connector Type B | IDC, Receptacle |
| Contact Plating | Gold |
| Current Rating | 2.3A |
| Length | 100mm |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ FFSD |
| Shielding | Unshielded |
| Termination | IDT |
| Wire/Cable Type | Flat, Flat Flex |
| RoHS | Compliant |
Download the complete datasheet for Samtec FFSD-25-D-04.00-01-N to view detailed technical specifications.
