Surface mount socket strip with 30 positions and 2 rows, featuring a 1.27mm pitch. This straight, female socket receptacle is constructed with bronze contacts and gold plating for mating. The black polymer insulation supports a maximum current rating of 1.75A and operates within a temperature range of -55°C to 125°C. Packaged on tape and reel, this RoHS compliant component is designed for solder termination.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FLE-115-01-G-DV-K-TR technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Current Rating | 1.75A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 650 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | FLE |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec FLE-115-01-G-DV-K-TR Datasheet
Download the complete datasheet for Samtec FLE-115-01-G-DV-K-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

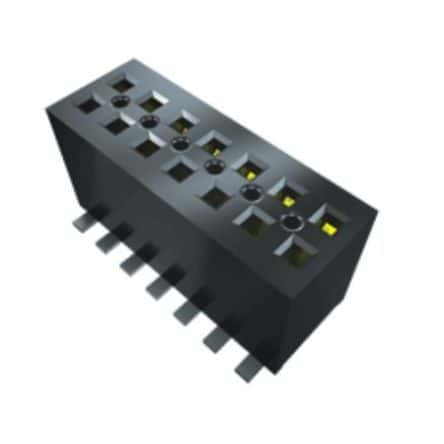

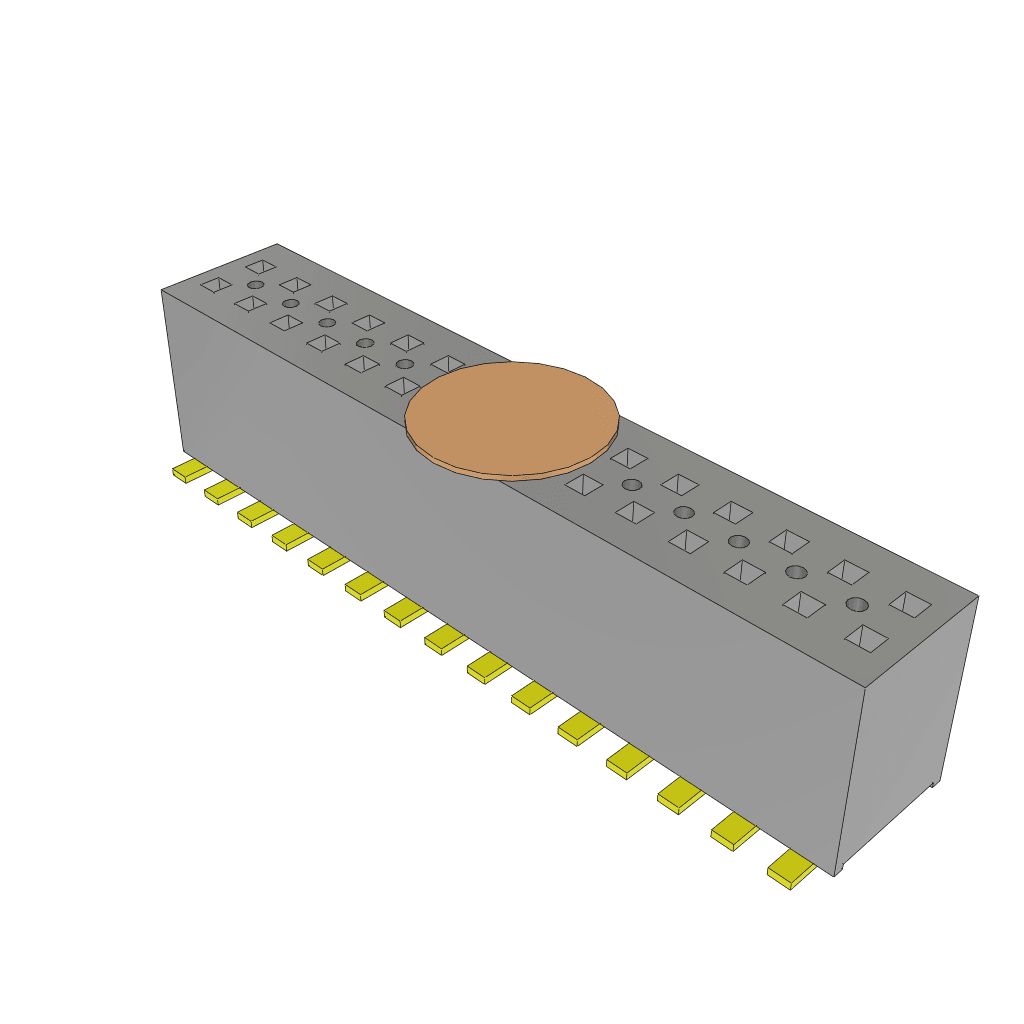

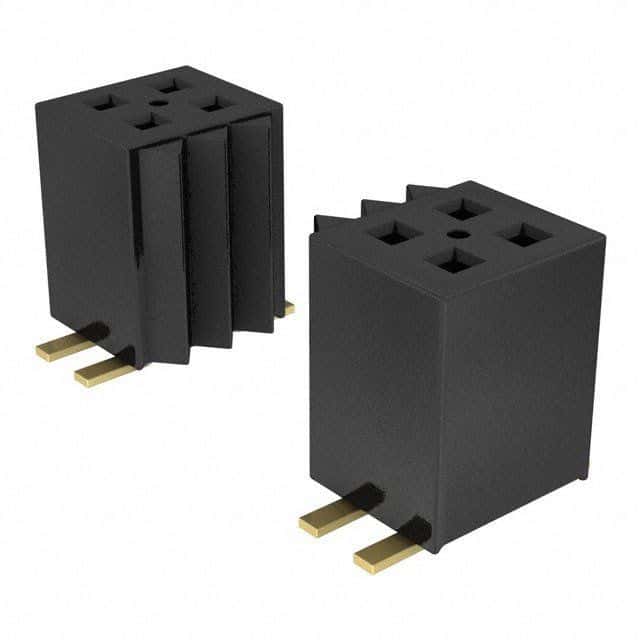

Product Images
