SAMTEC

FTE-110-01-G-DV

Datasheet

20 Pos 0.8mm HDR, 2 Rows, Gold Plated, SMD, Straight

Samtec

FTE-110-01-G-DV

Name: FTE-110-01-G-DV Samtec
Brand: Samtec
SKU: FTE-110-01-G-DV

20 Pos 0.8mm HDR, 2 Rows, Gold Plated, SMD, Straight

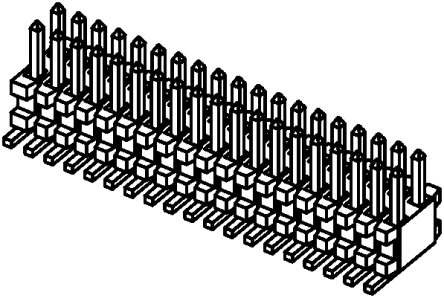

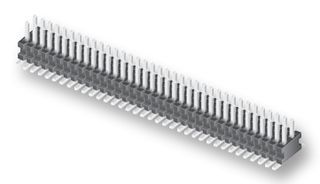

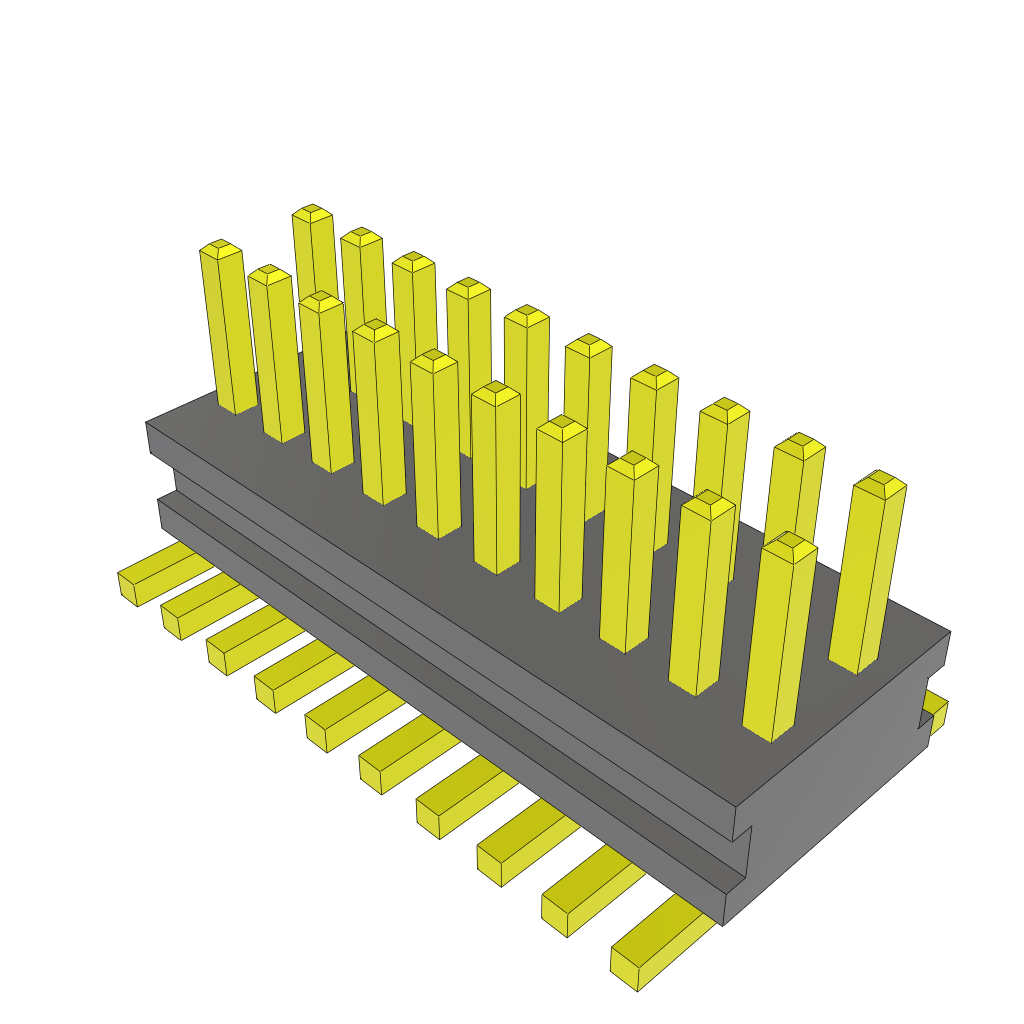

Unshrouded header, male, 20 positions, 2 rows, 0.8mm pitch, straight orientation, surface mount termination. Features bronze contacts with gold plating, 0.075-inch mating length, and a 750mA current rating. Black housing, 8mm length, 3.05mm depth, operating temperature range of -55°C to 125°C. Lead-free and RoHS compliant.

Current Rating750mA

MountingSurface Mount

Quick Jump:

Technical Specifications

Samtec FTE-110-01-G-DV technical specifications.

General

Color	Black
Contact Material	Bronze
Contact Mating Length	0.075inch
Contact Plating	Gold
Current Rating	750mA
Depth	3.05mm
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	8mm
Max Current Rating	750mA
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Contacts	20
Number of Positions	20
Number of Rows	2
Orientation	Straight
Packaging	Rail/Tube
Pitch	0.8mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.047inch
Series	FTE
Termination	Solder
