Technical Specifications

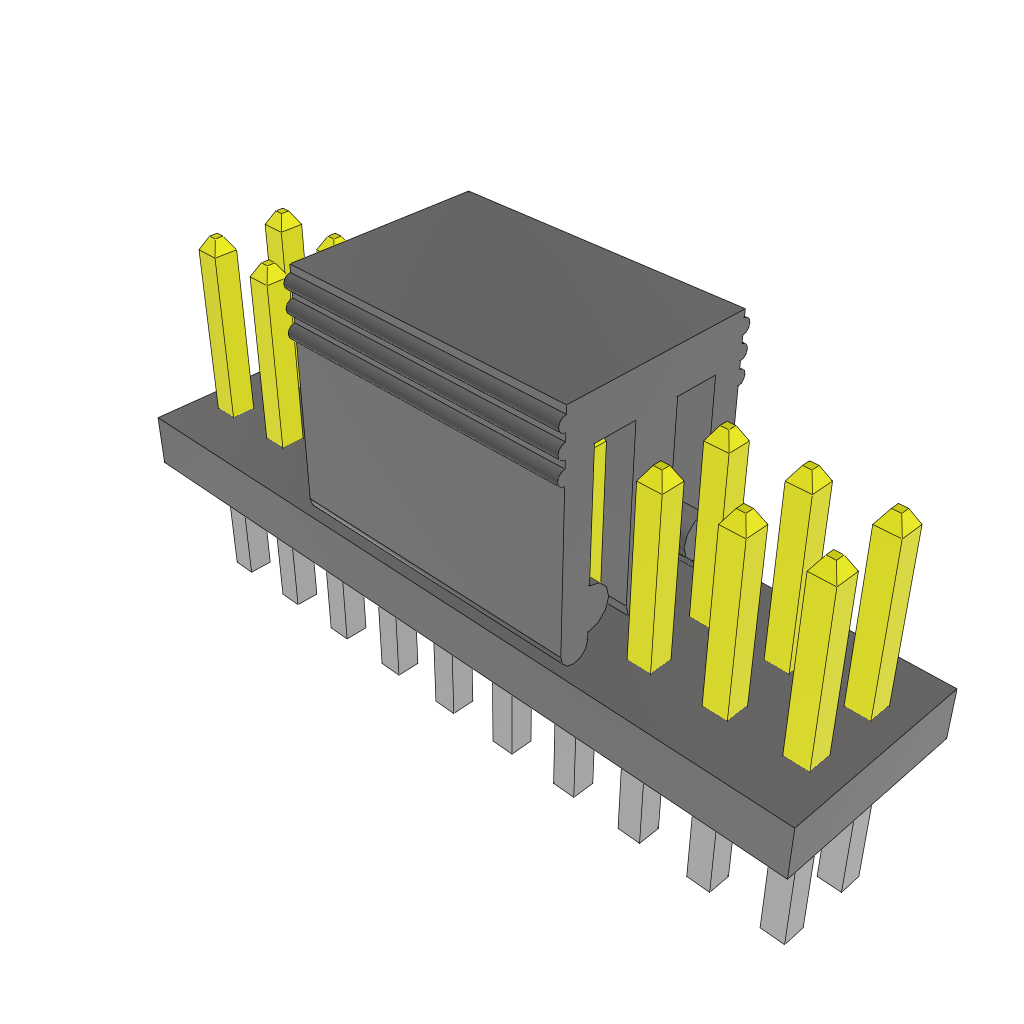

Samtec FTS-110-01-F-D-P technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Depth
3.42mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
12.7mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
1.27mm
RoHS Compliant
Yes
Series
FTS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FTS-110-01-F-D-P Datasheet
Download the complete datasheet for Samtec FTS-110-01-F-D-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
