Unshrouded header with 30 positions and 2 rows, featuring a 1.27mm pitch. Male pin contacts are made of bronze with gold plating for mating surfaces, offering a square contact shape. This straight-orientation component has a solder termination and a thru-hole mounting style. The black polymer housing and insulation are rated UL94 V-0 for flammability, operating within a temperature range of -55°C to 125°C.
Quick Jump:
Technical Specifications
Samtec FTS-115-02-L-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Depth
3.42mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
19.05mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
30
Number of Positions
30
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FTS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec FTS-115-02-L-D Datasheet
Download the complete datasheet for Samtec FTS-115-02-L-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

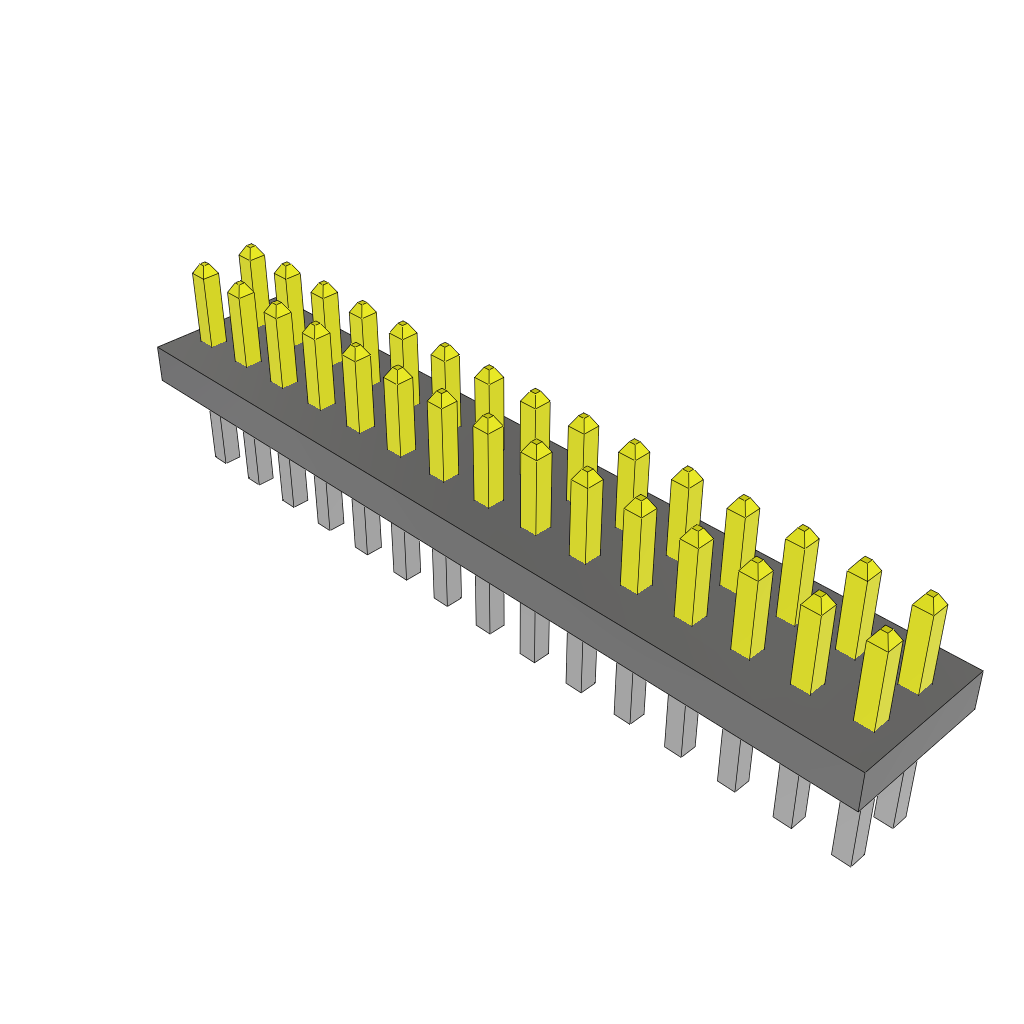

Product Images
