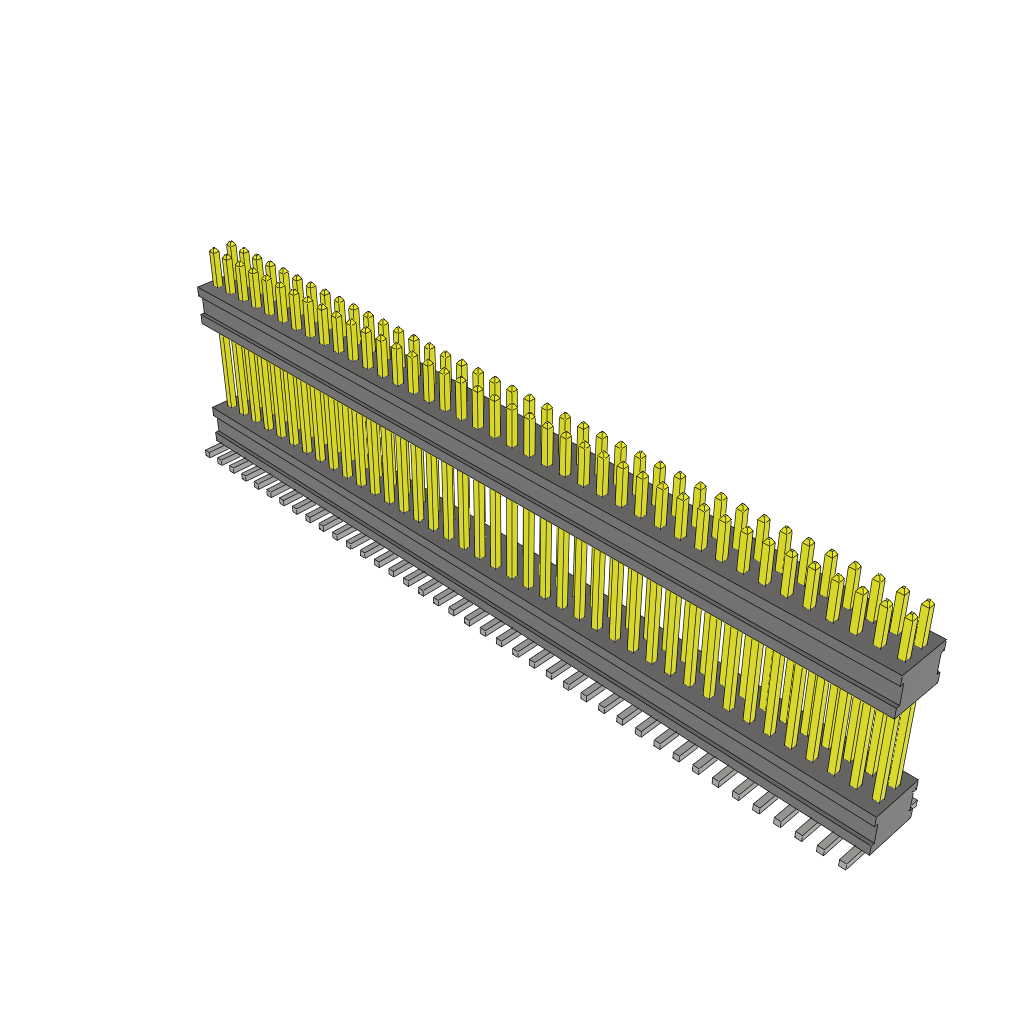

The Samtec FW-40-05-S-D-453-097-A is a board stacker with 80 HDR contacts, a terminal pitch of 1.27mm, and 2 rows. It features a straight body orientation and is designed for surface mount applications. The board stacker has a maximum operating temperature range of -55°C to 125°C and a maximum current rating of 1.75A per contact. It measures 11.5mm in height and has a mating length of 2.46mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec FW-40-05-S-D-453-097-A technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 80 |
| Terminal Pitch | 1.27mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Surface Mount |
| Max Current Rating | 1.75/ContactA |
| Height | 11.5mm |
| Mating Length | 2.46mm |
Compliance
| RoHS | Yes with Exemption |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec FW-40-05-S-D-453-097-A Datasheet
Download the complete datasheet for Samtec FW-40-05-S-D-453-097-A to view detailed technical specifications.
No datasheet is available for this part.
