6-position, 2-row female socket strip with 2.54mm pitch and 0.1-inch row spacing. Features gold-plated copper square contacts for mating, a black polymer insulator, and through-hole termination for solder mounting. Operates within a temperature range of -55°C to 125°C and has a 400V AC voltage rating. Supplied in a tube for packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec HLE-103-02-G-DV-PE-BE technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Gender | Female |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | HLE |
| Termination | Solder |
| Voltage Rating (AC) | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec HLE-103-02-G-DV-PE-BE Datasheet
Download the complete datasheet for Samtec HLE-103-02-G-DV-PE-BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

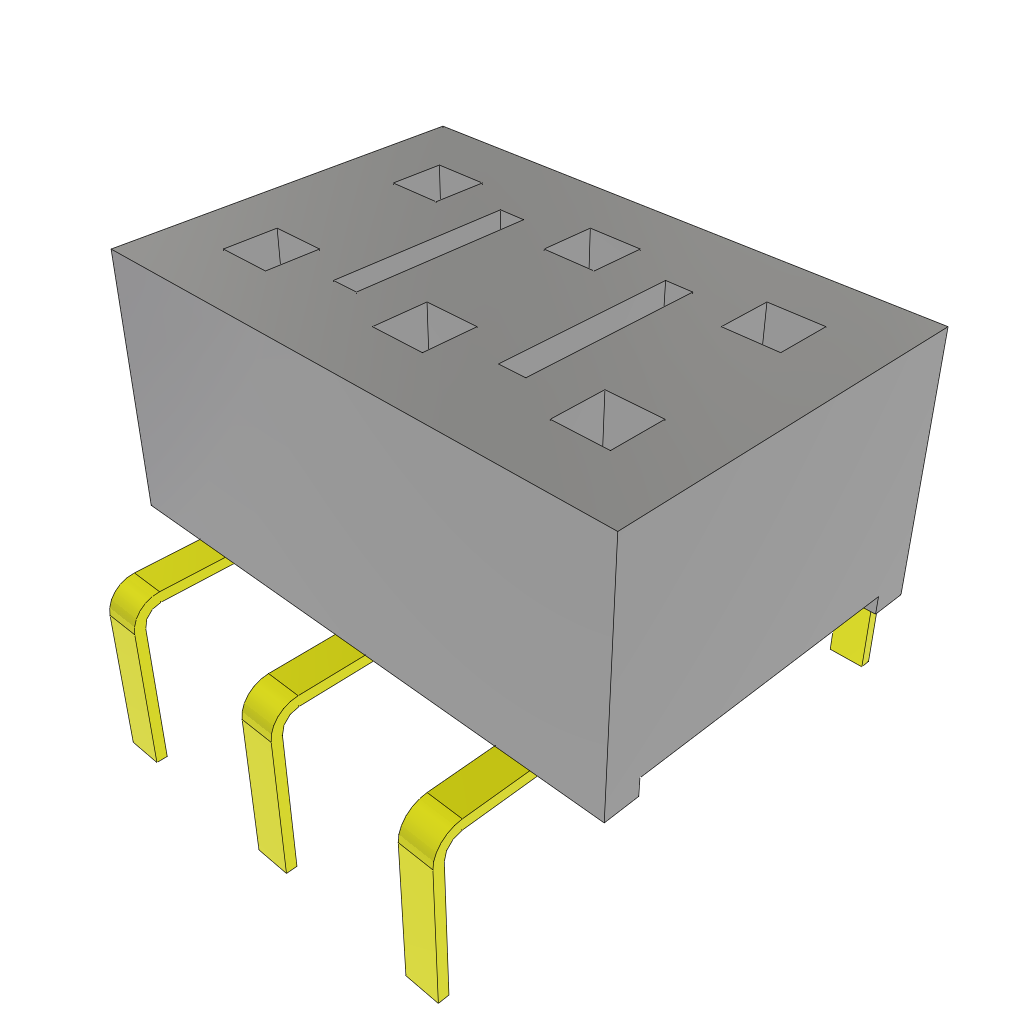

Product Images
