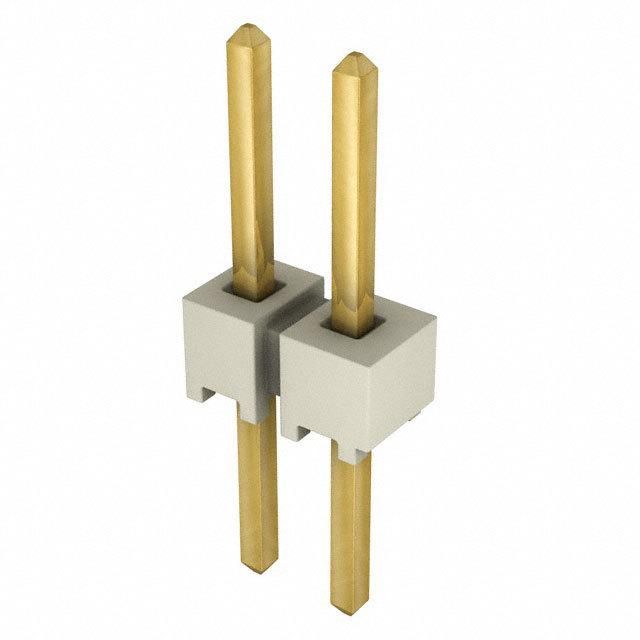

Unshrouded header with 2 positions and 1 row, featuring a 2.54mm pitch. This straight, top-entry, through-hole mounted component offers a male pin contact type with a square shape and bronze contact material. It boasts a gold contact finish and plating, with a mating length of 0.23 inches. The natural colored polymer insulation and housing are rated UL94 V-0 for flammability. Maximum current rating is 7.6A, with a maximum operating temperature of 125°C and a maximum AC voltage rating of 550V.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec HTSW-102-08-G-S technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 2.48mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 5.08mm |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HTSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec HTSW-102-08-G-S Datasheet
Download the complete datasheet for Samtec HTSW-102-08-G-S to view detailed technical specifications.
