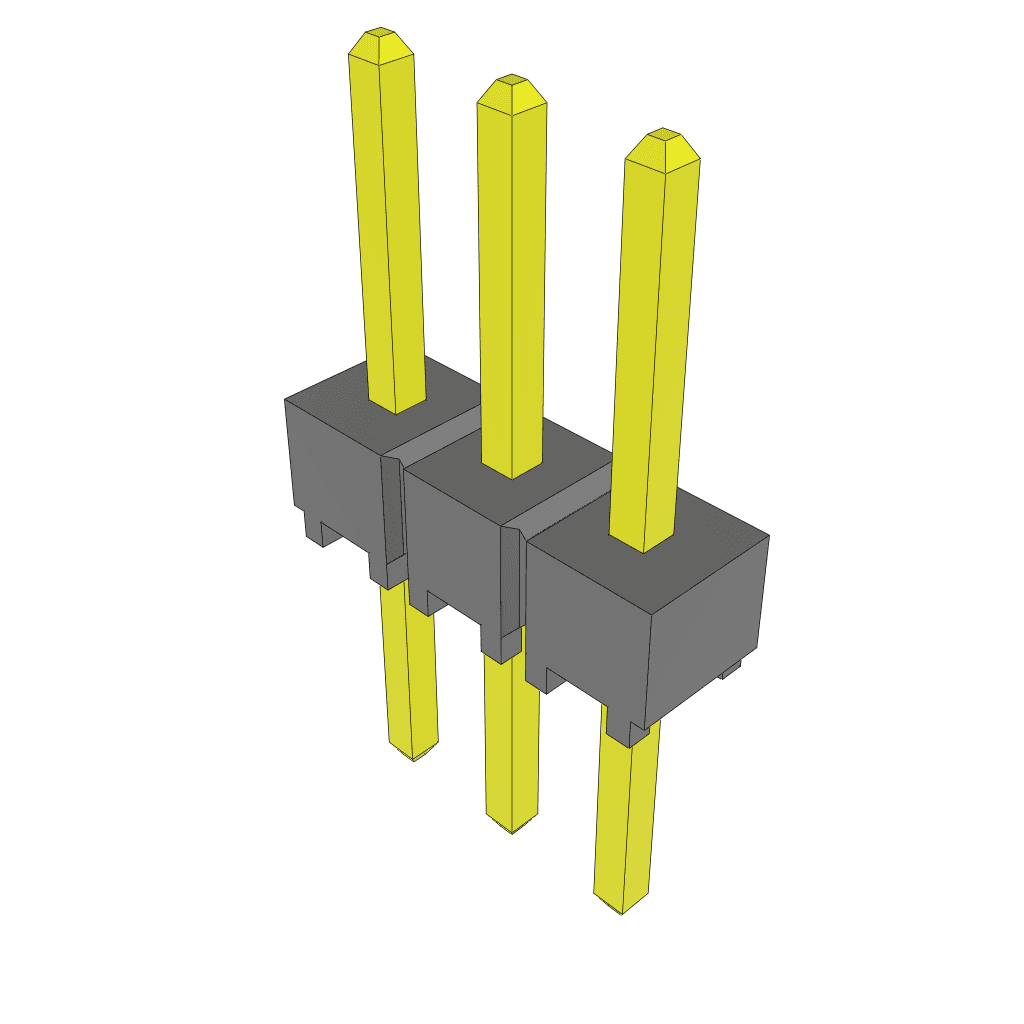

Unshrouded header with 3 positions and 1 row, featuring a 2.54mm pitch. This straight, top-entry, thru-hole mounted component offers male pin contacts with gold plating and bronze material, rated for 7.6A max current and 550V AC max voltage. The natural colored polymer insulation and housing are UL94 V-0 flammability rated, operating from -55°C to 125°C. Termination is via solder.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec HTSW-103-08-G-S technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 2.48mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Polymer |
| Length | 7.62mm |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HTSW |
| Termination | Solder |
