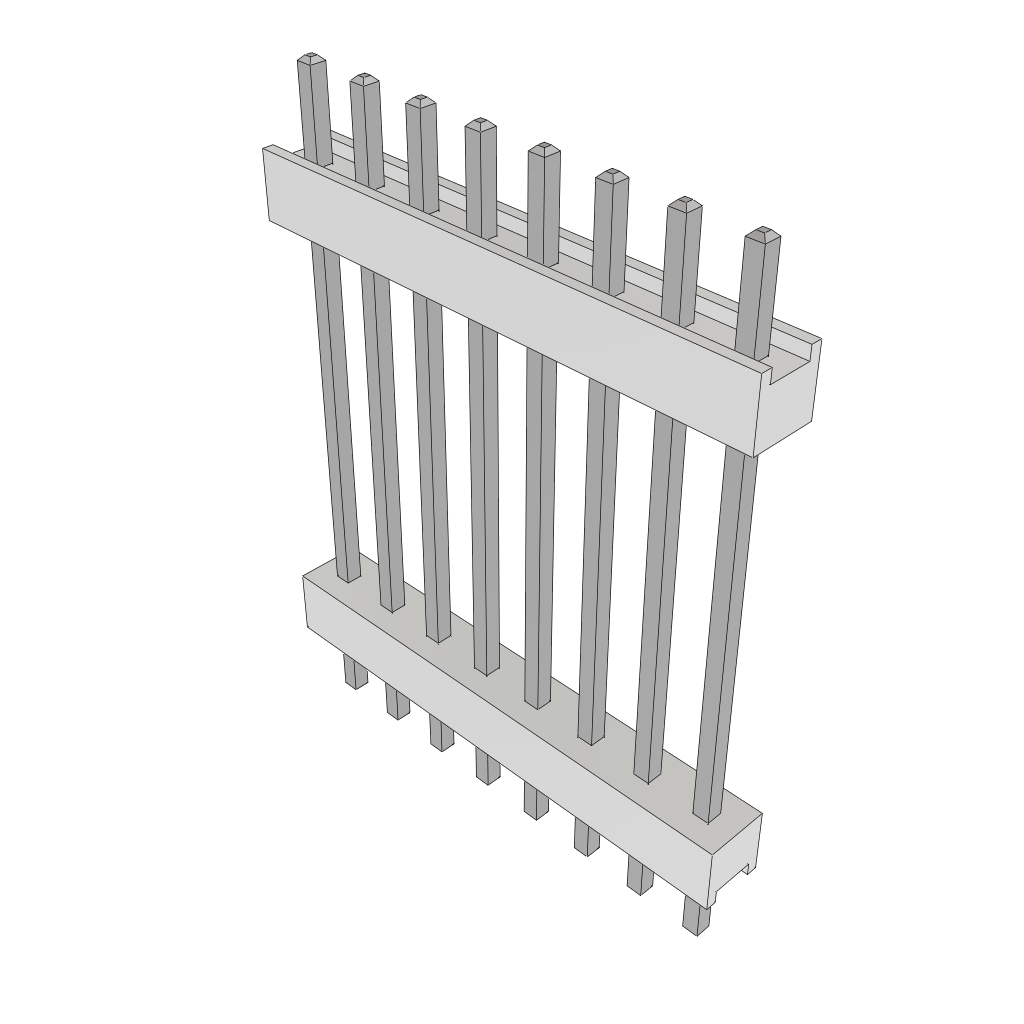

The Samtec HW-08-12-T-S-787-121 is an 8-position HDR board stacker connector with a terminal pitch of 2.54mm and a termination method of solder. It has a maximum operating temperature range of -55°C to 105°C and is designed for through-hole mounting. This connector features a straight body orientation and a maximum current rating of 3A per contact. The connector's height is 23.08mm and the mating length is 3.11mm.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec HW-08-12-T-S-787-121 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 8 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 23.08mm |
| Mating Length | 3.11mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec HW-08-12-T-S-787-121 Datasheet
Download the complete datasheet for Samtec HW-08-12-T-S-787-121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
